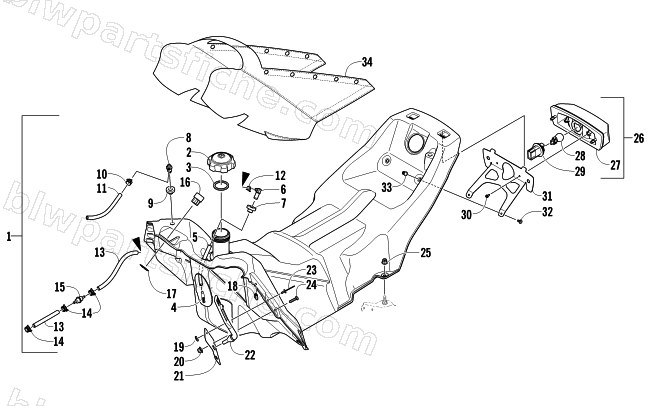

GAS TANK AND TAILLIGHT ASSEMBLY
2011 ARCTIC CAT SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-887 | R/B 0770-947 | 1 | $731.95 | |
| 2 | 2670-077 | CAP,VENTED-GAS-91 OCTANE | 1 | $54.95 | |
| 4 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 5 | 0610-815 | R/B 0610-814 | 1 | $191.95 | |
| 5 | 0610-814 | HOSE,GREEN -.187 X .312 X 50 FEET | 1 | $239.95 | |
| 6 | 0109-284 | ELBOW,GAS TANK | 1 | $27.95 | |
| 8 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 9 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 10 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 11 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 11 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 12 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 13 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 14 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 | |
| 15 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 16 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 17 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 18 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 19 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 20 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 21 | 4706-352 | BRKT,MTG-HOOD-PTD BLK | 1 | $20.63 | |
| 22 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 8470-525 | SCREW,MACH-TSPNH M5X.8X25 CL8.8 Z&Y | 1 | $2.47 | |
| 25 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 26 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 27 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 28 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 29 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 30 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 31 | 5606-968 | BRKT,MTG-TAILLIGHT | 1 | $43.95 | |
| 32 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 33 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 34 | 5706-076 | COVER,GAS TANK | 1 | $69.95 |
