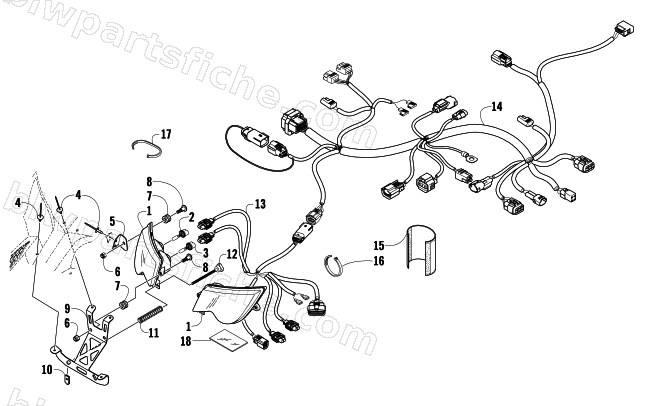

2011 Arctic Cat ARCTIC CAT SNO PRO 600 — HEADLIGHT AND WIRING ASSEMBLY
2011 ARCTIC CAT SNO PRO 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 1 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 2 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 3 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 5606-390 | BRKT,HEADLIGHT-RH | 1 | $16.49 | |
| 5 | 5606-391 | BRKT,HEADLIGHT-LH | 1 | $54.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 8 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 9 | 5606-392 | BRKT,HEADLIGHT-MIDDLE | 1 | $49.95 | |
| 10 | 1623-052 | NUT,U | 1 | $0.95 | |
| 11 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 12 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 13 | 1686-595 | HARNESS,HOOD-2010 600 SNO CROSS | 1 | $192.95 | |
| 14 | 1686-629 | HARNESS,MAIN-11 SP 600 | 1 | $524.95 | |
| 15 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 | |
| 16 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 |
