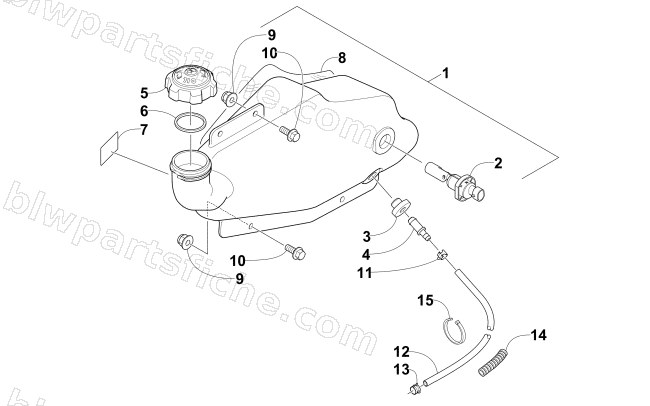

OIL TANK ASSEMBLY
2011 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-909 | TANK,OIL-ASSY | 1 | $217.95 | |
| 2 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 3 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 4 | 1670-481 | FITTING,OIL TANK | 1 | $4.26 | |
| 5 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 6606-185 | FOIL, PROTECTIVE-OIL TANK | 1 | $15.11 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 11 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 12 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 13 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 14 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 15 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
