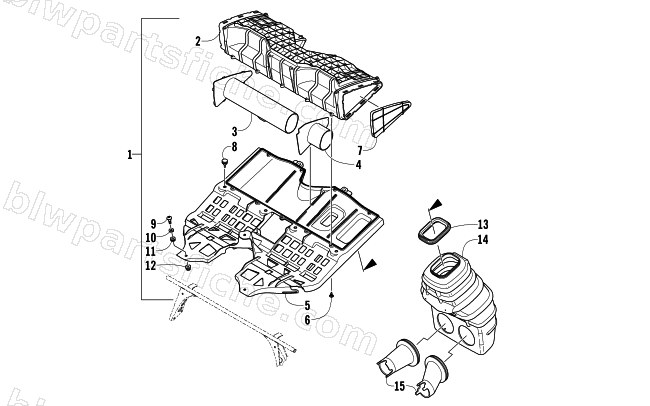

2011 Arctic Cat BEARCAT 570 — AIR SILENCER ASSEMBLY
2011 BEARCAT 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-778 | INTAKE, SUPPORT-ASSY-F/C | 1 | $251.95 | |
| 2 | 1670-732 | INTAKE SUPPORT - TOP | 1 | $66.95 | |
| 3 | 1670-852 | RESONATOR,UPR PLENUM-RH | 1 | $41.95 | |
| 4 | 1670-925 | RESONATOR, UPR PLENUM-LH-F/C | 1 | $45.95 | |
| 5 | 1670-733 | INTAKE, SUPPORT-BOTTOM-4 STROKE | 1 | $77.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1670-831 | COVER,TOP PLENUM-LH | 1 | $13.73 | |
| 8 | 4606-276 | GROMMET,HEADLIGHT-REAR | 1 | $12.35 | |
| 9 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 10 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 11 | 4606-275 | GROMMET,HEADLIGHT-FRONT | 1 | $6.75 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 1670-942 | SEAL,AIR SILENCER-F/C | 1 | $24.77 | |
| 14 | 1670-941 | SILENCER,AIR-ROUTED-570 F/C | 1 | $124.95 | |
| 15 | 1670-944 | BOOT, AIR SILENCER-570 | 1 | $50.95 |
