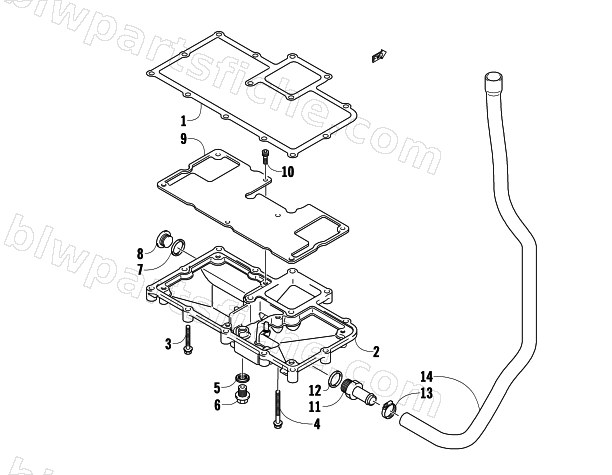

OIL PAN ASSEMBLY
2011 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-099 | GASKET,OIL PAN | 1 | $30.95 | |
| 2 | 3007-100 | PAN,OIL | 1 | $230.95 | |
| 3 | 3007-504 | BOLT,OIL PAN | 1 | $2.75 | |
| 4 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 5 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 6 | 3007-101 | PLUG,OIL DRAIN (12X16) | 1 | $17.87 | |
| 7 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 | |
| 8 | 3007-501 | PLUG,OIL GALLERY(M18) | 1 | $15.11 | |
| 9 | 3007-102 | PLATE,OIL PAN | 1 | $30.95 | |
| 10 | 3007-092 | BOLT,OIL SEP PLATE (6X12) | 1 | $2.95 | |
| 11 | 3007-093 | UNION,WATER BYPASS HOSE | 1 | $30.95 | |
| 12 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 13 | 3007-856 | CLAMP,BREATHER HOSE | 1 | $19.25 | |
| 14 | 3007-507 | HOSE,BREATHER TANK OIL RETURN | 1 | $66.95 |
