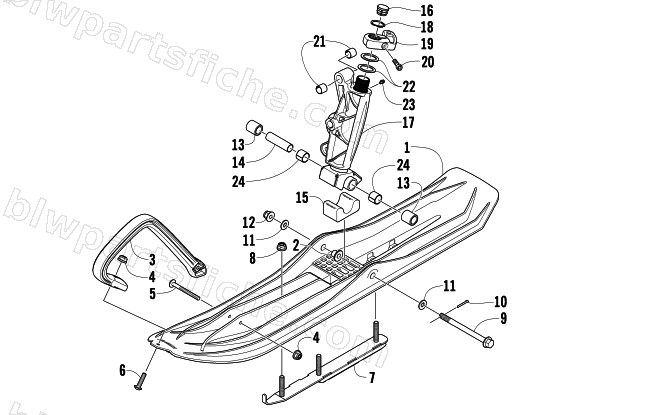

SKI AND SPINDLE ASSEMBLY
2011 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-729 | SKI, PLASTIC-203.2 MM (8") FLOATATION | 1 | $283.95 | |
| 2 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 3 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 4 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 5 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 6 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 7 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 7 | 2703-598 | SKAG,SPLIT-RH-4"-3 BOLT-.312"-PTD BLK | 1 | $75.00 | |
| 7 | 2703-599 | SKAG,SPLIT-LH-4"-3 BOLT-3.12"-PTD BLK | 1 | $75.00 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 1623-718 | BOLT, SKI-HFH M 10 - 1.25 X 200 CL10.9 | 1 | $13.73 | |
| 10 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 11 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 12 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 13 | 2603-731 | SPACER, SPINDLE-31.75 MM (1.25") | 1 | $6.75 | |
| 14 | 2603-730 | AXLE, SPINDLE-138.68 MM (5.46") | 1 | $38.95 | |
| 15 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 16 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 17 | 2703-452 | SPINDLE,RH (PLT)-FAB | 1 | $383.95 | |
| 17 | 2703-453 | SPINDLE,LH (PLT)-FAB | 1 | $383.95 | |
| 18 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 19 | 4706-116 | ARM,SPINDLE-RH-PLAT | 1 | $58.95 | |
| 19 | 4706-117 | ARM,SPINDLE-LH-PLAT | 1 | $58.95 | |
| 20 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 21 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 22 | 2603-382 | WASHER,THRUST-SPINDLE WELD'T-.030 | 1 | $2.75 | |
| 23 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 24 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 |
