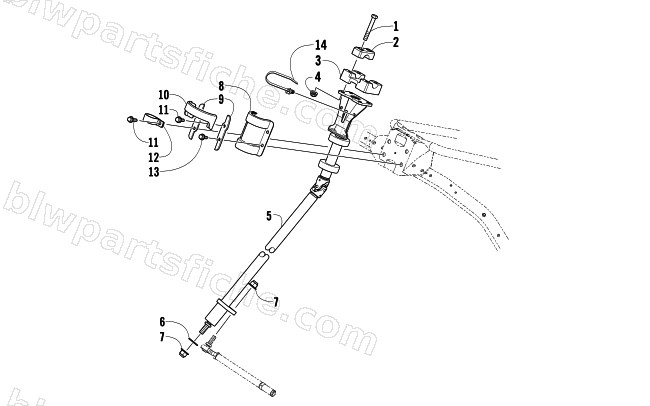

STEERING POST ASSEMBLY
2011 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 2 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 3 | 0605-507 | LOCK,ADJUSTING-STEERING | 1 | $60.95 | |
| 4 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 5 | 1705-353 | POST,STEERING-PTD BLK | 1 | $311.95 | |
| 6 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 7 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 8 | 1705-087 | BRKT, BEARING-UPPER-PTD | 1 | $29.95 | |
| 9 | 1705-201 | PLATE,BEARING BRACKET-PTD BLK | 1 | $6.75 | |
| 10 | 0605-993 | BRKT,WIRE PROTECTOR | 1 | $16.49 | |
| 11 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 12 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 13 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 14 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
