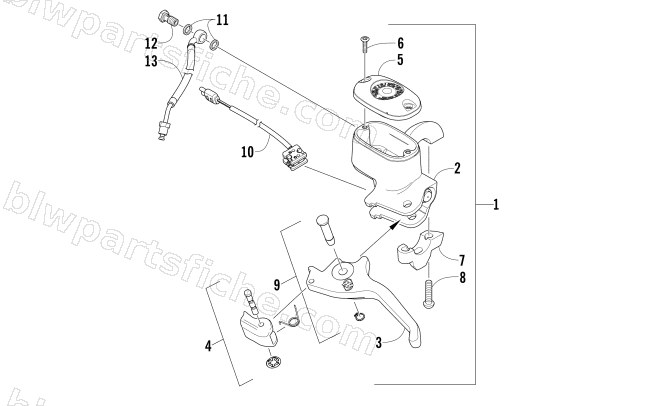

HYDRAULIC BRAKE CONTROL ASSEMBLY
2011 CF8 1.5 LTD SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 | |
| 1 | 1602-930 | 1/2" FULL ASSEMBLY-BRAKE | 1 | $333.95 | |
| 2 | 1602-929 | 1/2" PISTON SUB-ASSY W/ RESERVOIR BODY | 1 | $333.95 | |
| 3 | 1602-931 | LEVER & PARK LEVER SUB-ASSY | 1 | $120.95 | |
| 5 | 1602-933 | RESERVOIR COVER SUB-ASSYW/GASKET | 1 | $128.95 | |
| 6 | 1602-934 | RESERVOIR COVER SCREWS | 1 | $20.63 | |
| 7 | 1602-935 | CLAMP-BRAKE | 1 | $41.95 | |
| 8 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 9 | 1602-937 | PIVOT PIN & SNAP RING-BRAKE | 1 | $49.95 | |
| 10 | 1602-938 | BRAKE LIGHT SWITCH | 1 | $84.95 | |
| 11 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 12 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 13 | 2602-171 | R/B 3602-096 | 1 | $100.95 |
