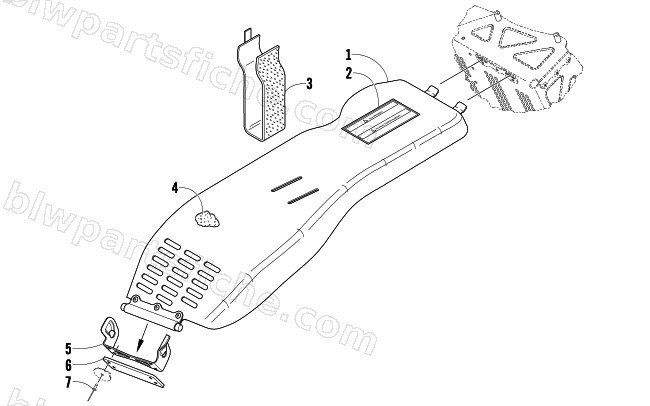

2011 Arctic Cat CF8 2.25 LTD SNO PRO — BELT GUARD ASSEMBLY
2011 CF8 2.25 LTD SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-094 | GUARD,CLUTCH-FAB | 1 | $124.95 | |
| 2 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 3 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 4 | 0617-497 | FOAM,CLUTCH GUARD | 1 | $27.95 | |
| 5 | 0607-836 | BRKT,MTG-CLUTCH GUARD/BELLYPAN-FORMED | 1 | $56.95 | |
| 6 | 6606-209 | SPACER, CLUTCH GUARD MOUNING BRACKET | 1 | $3.99 | |
| 7 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 |
