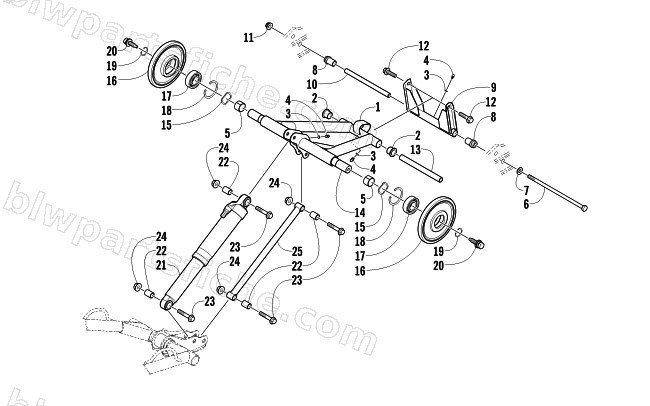

2011 Arctic Cat CF8 2.25 LTD SNO PRO — REAR SUSPENSION REAR ARM ASSEMBLY
2011 CF8 2.25 LTD SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-968 | ARM,IDLER-FAB (SL GREEN) | 1 | $200.95 | |
| 2 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 3 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 2604-852 | BEARING, 16DU12 | 1 | $10.97 | |
| 6 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 7 | 0623-439 | WASHER, FLAT .375X.625X.064 | 1 | $2.33 | |
| 8 | 2604-664 | BUSHING,REAR ARM-PWD METAL | 1 | $53.95 | |
| 9 | 1704-978 | ARM, REAR-MACH (SL GREEN) | 1 | $56.95 | |
| 10 | 2604-663 | AXLE,REAR ARM-INNER-6.124" | 1 | $16.49 | |
| 11 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 12 | 1623-503 | SCREW,CAP-HFH 3/8-16X0.75 W/2353 | 1 | $2.75 | |
| 13 | 2604-176 | AXLE,ALUM-.750 X 6.817-MACH | 1 | $197.95 | |
| 14 | 3604-254 | AXLE,INNER CARRIAGE | 1 | $98.95 | |
| 15 | 1623-692 | WASHER,WAVE-1.028X1.268X.028 | 1 | $2.47 | |
| 16 | 2604-699 | WHEEL, IDLER-6.38 (NO INSR) | 1 | $53.95 | |
| 17 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 18 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 19 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 20 | 1623-166 | SCREW,CAP-HH SEMS 3/8-16 X 1.250 BLK | 1 | $4.95 | |
| 21 | 2704-022 | SHOCK,FLOAT-16"-REAR ARM-ASSY | 1 | $373.95 | |
| 22 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 23 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 24 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 25 | 1704-972 | LINK,REAR SHOCK-MACH (SL GREEN) | 1 | $26.95 |
