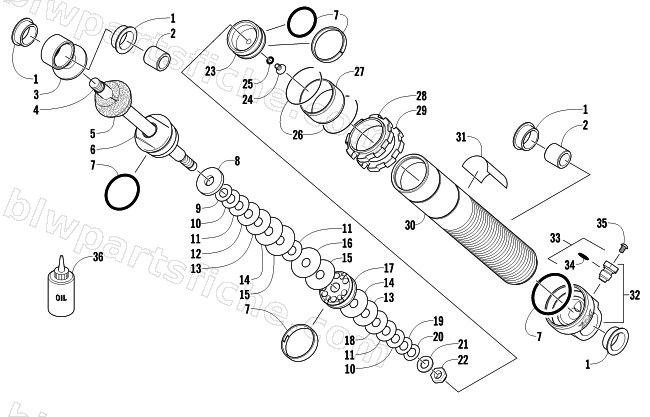

FRONT SUSPENSION SHOCK ABSORBER
2011 CF8
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-804 | SHOCK,SKI-18.72" ZERO PRO (43") | 1 | $441.95 | |
| 1 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 2 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 3 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 4 | 2603-809 | SHAFT,SHOCK-.498 OD X 9.450" TLG | 1 | $56.95 | |
| 5 | 2603-459 | BUMPER,FOX SHOCK - 1" | 1 | $44.95 | |
| 6 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 7 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 8 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 9 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 10 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 11 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 12 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 13 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 14 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 15 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 16 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 17 | 0603-209 | PISTON,SHOCK-.081 DIA HOLE | 1 | $79.95 | |
| 18 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 19 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 20 | 2603-902 | VALVE, .550 X .020 (3/8 ID) | 1 | $6.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 24 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 25 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 26 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 27 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 28 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 29 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 30 | 2603-808 | BODY,ALUM 1.459 BORE x 9.50 TLG | 1 | $348.95 | |
| 31 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 32 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 33 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 34 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 35 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 36 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
