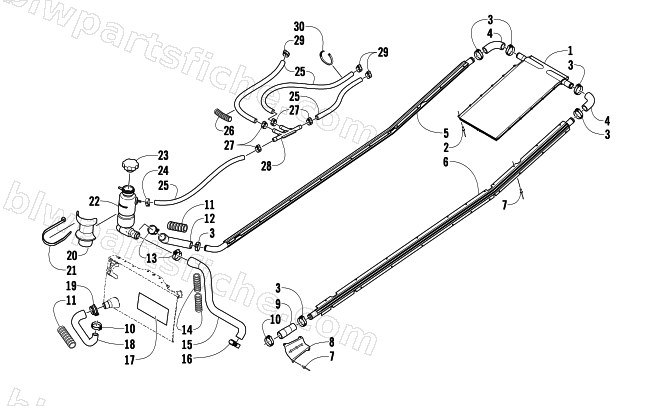

2011 Arctic Cat CFR1000 — COOLING ASSEMBLY
2011 CFR1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-179 | HEAT EXCHANGER,REAR-WELDT | 1 | $251.95 | |
| 2 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 3 | 1623-349 | CLAMP,H0SE-CRIMP-31.6 | 1 | $3.99 | |
| 4 | 0610-816 | HOSE,COOLANT-90 DEG-84"ID X 2.25" | 1 | $17.87 | |
| 5 | 5606-584 | HEAT EXCH,CORNER-CFR-R/H-FORMED | 1 | $117.95 | |
| 6 | 5606-585 | HEAT EXCH,CORNER-CFR-L/H-FORMED | 1 | $121.95 | |
| 7 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 7 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 8 | 4606-270 | PROTECTOR,HOSE-FRONT | 1 | $13.73 | |
| 9 | 0610-679 | HOSE,COOLANT-FRT EXCH/LH EXCH | 1 | $22.01 | |
| 10 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 11 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 12 | 0610-659 | HOSE,COOLANT-RH EXCH/TANK | 1 | $30.95 | |
| 13 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 14 | 1619-354 | PROTECTOR,HOSE-1.48X1.25X5' | 1 | $37.95 | |
| 15 | 0610-681 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $60.95 | |
| 16 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 17 | 4606-962 | PAD,HEAT EXCH-FRONT | 1 | $5.09 | |
| 18 | 0610-680 | HOSE,COOLANT-ENG/FRT EXCH | 1 | $33.95 | |
| 19 | 1623-322 | CLAMP,HOSE-SPRING (15W X 35) | 1 | $4.26 | |
| 20 | 6606-210 | SHIELD,HEAT-COOLANT BOTTLE | 1 | $30.95 | |
| 21 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 22 | 3706-684 | TANK,COOLANT-W/FITTING | 1 | $180.95 | |
| 23 | 4606-209 | CAP,COOLANT BOTTLE (W/THREADS) | 1 | $26.95 | |
| 24 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 25 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 26 | 1619-355 | LOOM,HIGH TEMP-1/2"X5' | 1 | $29.95 | |
| 27 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 28 | 0610-717 | FITTING,COOLANT HOSE-DOUBLE T | 1 | $3.02 | |
| 29 | 1623-619 | CLAMP,HOSE-CRIMP-10.5 | 1 | $4.54 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
