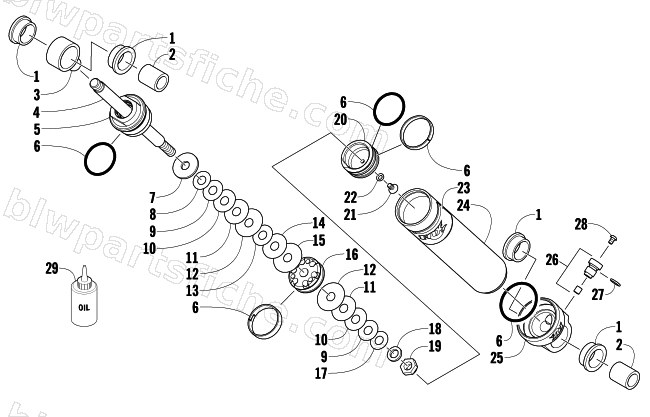

REAR SUSPENSION REAR ARM SHOCK ABSORBER
2011 CFR8
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-807 | SHOCK,REAR ARM-14.37"-FOX | 1 | $601.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 0603-333 | VALVE, .800X.006(3/8ID) | 1 | $13.95 | |
| 9 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 10 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 11 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 14 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 16 | 2603-482 | PISTON,.046 ORIFICE- (FOX) | 1 | $62.95 | |
| 17 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 18 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 19 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 20 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 21 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 22 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 23 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 24 | 2604-864 | BODY,SHOCK - ALUM-7.25" | 1 | $212.95 | |
| 25 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 26 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 27 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 28 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 29 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
