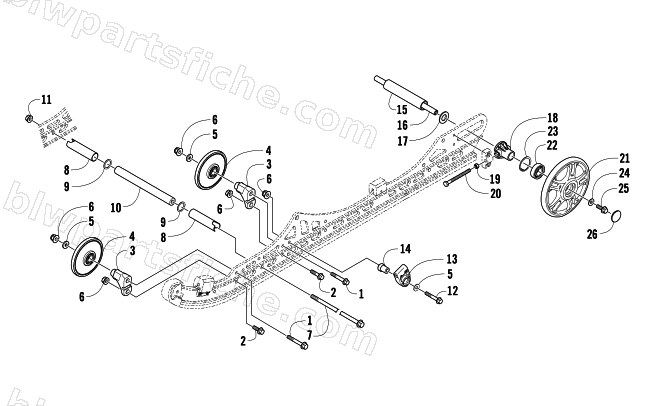

IDLER WHEEL ASSEMBLY
2011 F570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 2 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 3 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 4 | 3604-807 | WHEEL,IDL-5.63 W.787"ID-BLK (NO SPK) | 1 | $53.95 | |
| 5 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 6 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 8 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 9 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 10 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 12 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 13 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 14 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 15 | 3604-472 | SPACER, REAR WHEEL-216.7 LG | 1 | $46.95 | |
| 16 | 3604-300 | AXLE,REAR WHEEL-STEEL-M8 X 320.6 | 1 | $62.95 | |
| 17 | 0623-921 | WSHR, FLAT.788ID X 1.50OD X .109 | 1 | $1.64 | |
| 18 | 1704-490 | BUSHING,ADJUSTER-3 WHL-SHORT-MACH | 1 | $12.35 | |
| 19 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 20 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 21 | 3604-298 | WHEEL,IDL-7.12 W.787"ID WHITE | 1 | $53.95 | |
| 22 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 23 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 24 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 25 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 26 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 |
