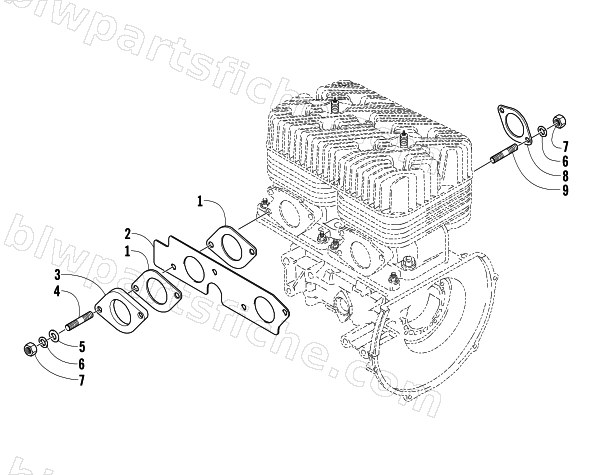

INTAKE ASSEMBLY
2011 F570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-615 | GASKET,INTAKE MANIFOLD-02 570 L/C | 1 | $17.87 | |
| 2 | 3006-466 | SHIELD, CARBURETOR | 1 | $20.63 | |
| 3 | 3006-075 | INSULATOR,INTAKE MANIFOLD '02 570 F/C | 1 | $32.95 | |
| 4 | 3007-481 | BOLT,STUD | 1 | $3.16 | |
| 5 | 3007-418 | WASHER | 1 | $2.95 | |
| 6 | 3007-417 | LOCK WASHER | 1 | $4.95 | |
| 7 | 3007-416 | NUT | 1 | $2.75 | |
| 8 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 9 | 3007-419 | STUD BOLT | 1 | $4.95 |
