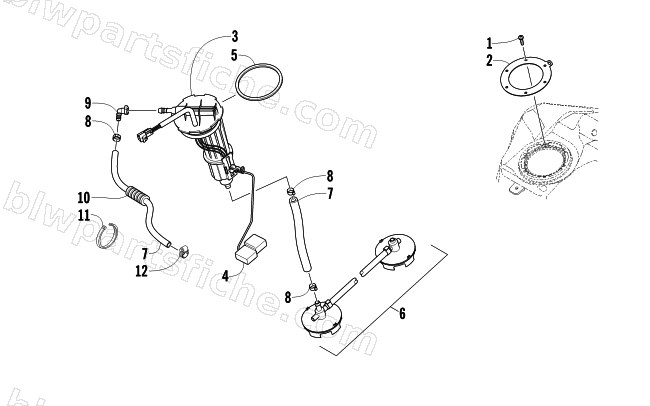

FUEL PUMP ASSEMBLY
2011 F8 EXT SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 3 | 2670-063 | PUMP,FUEL-2 STRK | 1 | $990.95 | |
| 4 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 2670-054 | PICKUP,FUEL-2 MP-ASSY | 1 | $209.95 | |
| 7 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 8 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 9 | 1670-878 | FITTING,QUICK CONNECTOR-3/8X5/16X90 DEG | 1 | $16.49 | |
| 10 | 1619-349 | LOOM-5/8-NYLON-CTL-5' (1619-294) | 1 | $16.49 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 12 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
