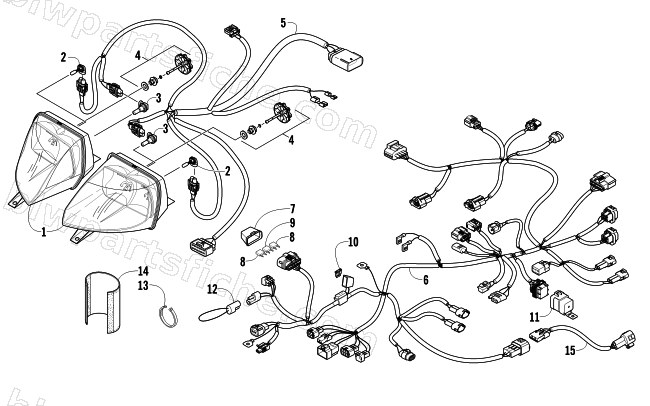

2011 Arctic Cat F8 EXT SNO PRO — HEADLIGHT AND WIRING ASSEMBLIES
2011 F8 EXT SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-908 | HEADLIGHT,RH-NO BEZEL-ASSY | 1 | $203.95 | |
| 1 | 0609-909 | HEADLIGHT,LH-NO BEZEL-ASSY | 1 | $203.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-572 | HARNESS,CONSOLE-2-STROKE | 1 | $178.95 | |
| 5 | 1686-573 | HARNESS,CONSOLE-2-STROKE W/ELEC START | 1 | $217.95 | |
| 6 | 1686-605 | HARNESS, MAIN (2011 F8) | 1 | $805.95 | |
| 6 | 1686-606 | HARNESS, MAIN (2011 F8 LXR) | 1 | $943.95 | |
| 7 | 0609-889 | COVER,FUSE HOLDER | 1 | $22.01 | |
| 8 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 9 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 10 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 10 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 0430-052 | RELAY,SPDT-30A WP | 1 | $30.95 | |
| 12 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 | |
| 13 | 1686-580 | HARNESS,TAILLIGHT EXTENSION-144" | 1 | $30.95 |
