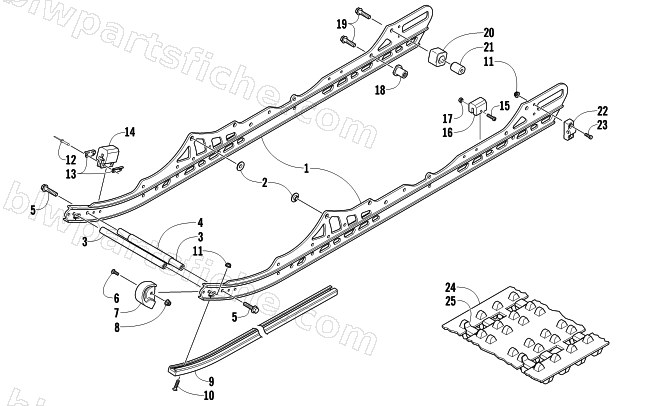

2011 Arctic Cat F8 EXT SNO PRO — SLIDE RAIL AND TRACK ASSEMBLY
2011 F8 EXT SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-983 | SUSP, REAR-144"(ZERO PRO-SP)-GRN-ASSY | 1 | $4,953.95 | |
| 1 | 3604-469 | RAIL,SUSP-144" OVERLOAD-MACH | 1 | $374.95 | |
| 2 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 3 | 3604-268 | AXLE,ALUM-M8 X 222.25 | 1 | $29.95 | |
| 4 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 5 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 6 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 7 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 10 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 11 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 12 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 13 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 14 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 15 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 16 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 17 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 18 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 19 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 20 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 21 | 3604-291 | BUSHING,REAR ARM COUPLER-M10 | 1 | $12.35 | |
| 22 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 2602-350 | TRACK,CROSSOVER-15X144X1.5 | 1 | $1,323.95 | |
| 24 | 2602-163 | TRACK,COBRA-15X144X1.352 | 1 | $1,215.95 | |
| 25 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
