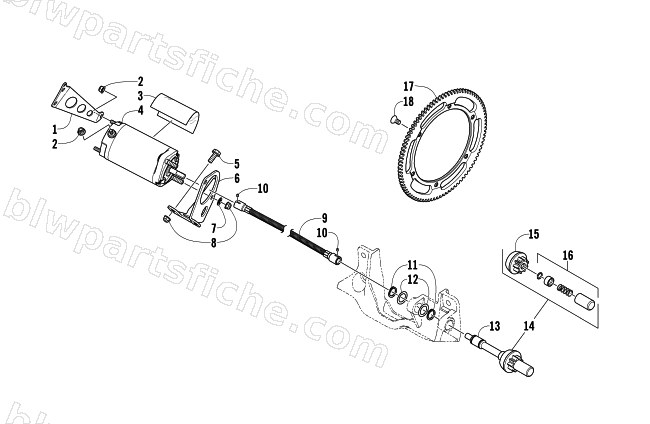

2011 Arctic Cat F8 LXR SNO PRO LTD — FLEX-DRIVE STARTER MOTOR ASSEMBLY
2011 F8 LXR SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-311 | BRKT,SUPPORT-STARTER-PTD BLK | 1 | $50.95 | |
| 2 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 3 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 4 | 0745-356 | STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS | 1 | $434.95 | |
| 5 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 6 | 0745-278 | BRKT,MTG-STARTER-PTD BLK | 1 | $54.95 | |
| 7 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 8 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 0745-167 | SHAFT, FLEX-BONDED ES ASSY | 1 | $125.95 | |
| 10 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 11 | 0645-382 | SNAP RING,EXTERNAL - .625 DIA | 1 | $1.64 | |
| 12 | 0645-429 | WASHER,THRUST .630I.D. X .915 O.D. | 1 | $3.95 | |
| 13 | 0745-372 | DRIVE/SHAFT, PINION-FLEX-800-ASSY | 1 | $255.95 | |
| 14 | 0637-351 | KIT,UPDATE-PINION GEAR | 1 | $77.95 | |
| 15 | 0645-380 | GEAR, PINION-RUBBER | 1 | $93.95 | |
| 16 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 17 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 18 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 |
