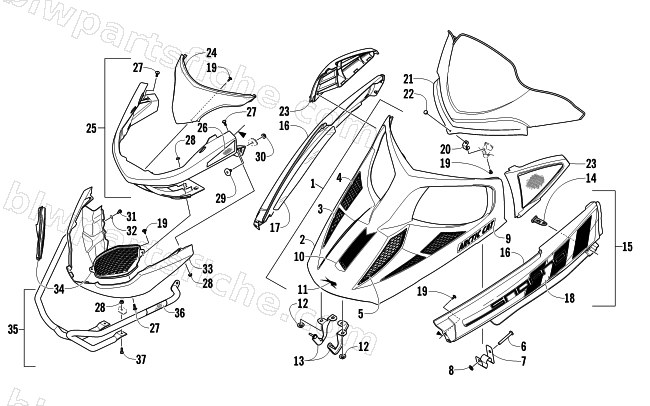

2011 Arctic Cat F8 LXR SNO PRO LTD — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2011 F8 LXR SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-076 | LID,HOOD-PTD SL GRN-W/DECALS | 1 | $197.95 | |
| 2 | 7800-843 | LID,HOOD-PTD SL GRN-MFG ASSY | 1 | $187.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 7 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 7 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 8 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 9 | 9611-304 | DECAL,HOOD LID-SL GRN-"ARCTIC CAT" | 1 | $29.95 | |
| 10 | 9611-305 | DECAL,HOOD LID-SL GRN-CREST | 1 | $24.77 | |
| 11 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 13 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 14 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 16 | 5706-016 | SPAR,FRONT-RH-PTD SL GRN | 1 | $134.95 | |
| 16 | 5706-017 | SPAR,FRONT-LH-PTD SL GRN | 1 | $122.95 | |
| 17 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 18 | 9611-302 | DECAL,FRT SPAR-SL GRN-RH "SNO PRO" | 1 | $88.95 | |
| 18 | 9611-303 | DECAL,FRT SPAR-SL GRN-LH "SNO PRO" | 1 | $56.95 | |
| 19 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 20 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 21 | 5606-984 | WINDSHIELD,EXTREME LOW-FLAT BACK | 1 | $217.95 | |
| 22 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 23 | 5706-026 | BEZEL,INTAKE-RH PTD SL GRN-ASSY | 1 | $113.95 | |
| 23 | 5706-027 | BEZEL,INTAKE-LH PTD SL GRN-ASSY | 1 | $113.95 | |
| 24 | 5706-022 | FACIA,BUMPER-UPR-PTD SL GRN | 1 | $128.95 | |
| 25 | 3718-072 | BUMPER,FRT CLIP-SL GRN-W/REF DECALS | 1 | $164.95 | |
| 26 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 26 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 34 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 34 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 35 | 5706-079 | BUMPER,SPORT-FRT-W/DECAL (SL GRN) | 1 | $180.95 | |
| 36 | 9611-395 | DECAL,REFLECTOR-AMBER | 1 | $34.95 | |
| 37 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 |
