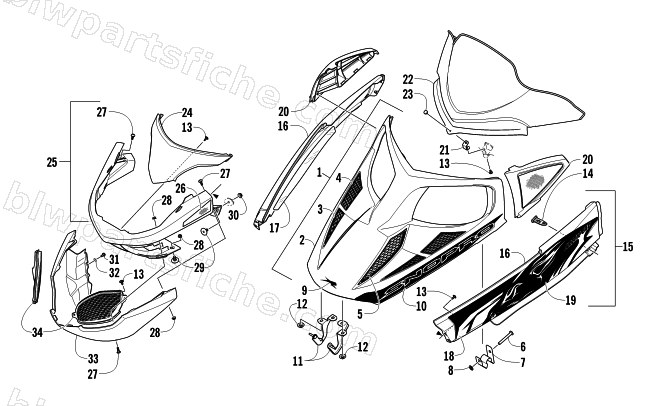

2011 Arctic Cat F8 SNO PRO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2011 F8 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-917 | LID,HOOD-ORN PTD CLEAR- W/DECALS | 1 | $275.95 | |
| 1 | 2718-889 | LID,HOOD-GRN PTD CLEAR- W/DECALS | 1 | $259.95 | |
| 2 | 7800-749 | LID, HOOD-ORN PTD CLEAR-MFG ASSY | 1 | $190.95 | |
| 2 | 7800-958 | LID,HOOD-GRN PTD CLEAR-MFG ASSY | 1 | $190.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 7 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 7 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 8 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 9611-076 | DECAL,HOOD LID-RH-"SNO PRO" | 1 | $50.95 | |
| 10 | 9611-077 | DECAL,HOOD LID-LH-"SNO PRO" | 1 | $85.95 | |
| 11 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 11 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 14 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 15 | 2718-940 | SPAR,FRONT RH-BLK/CLR-W/DECALS (ORN SP) | 1 | $156.95 | |
| 15 | 2718-941 | SPAR,FRONT LH-BLK/CLR-W/DECALS (ORN SP) | 1 | $161.95 | |
| 15 | 2718-938 | SPAR,FRONT RH-BLK/CLR-W/DECALS (GRN SP) | 1 | $125.95 | |
| 15 | 2718-939 | SPAR,FRONT LH-BLK/CLR-W/DECALS (GRN SP) | 1 | $125.95 | |
| 16 | 4706-610 | SPAR,FRONT BLK-RH-PTD CLEAR | 1 | $117.95 | |
| 16 | 4706-611 | SPAR,FRONT BLK-LH-PTD CLEAR | 1 | $117.95 | |
| 17 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 18 | 9611-086 | DECAL,FRT SPAR-FORWARD-ORN RH | 1 | $39.95 | |
| 18 | 9611-087 | DECAL,FRT SPAR-FORWARD-ORN LH | 1 | $73.95 | |
| 18 | 9611-078 | DECAL,FRT SPAR-FORWARD-GRN-RH | 1 | $45.95 | |
| 18 | 9611-079 | DECAL,FRT SPAR-FORWARD-GRN-LH | 1 | $45.95 | |
| 19 | 9611-088 | DECAL,FRONT SPAR-REAR-ORN RH | 1 | $57.95 | |
| 19 | 9611-089 | DECAL,FRONT SPAR-REAR-ORN LH | 1 | $57.95 | |
| 19 | 9611-080 | DECAL,FRONT SPAR-REAR-GRN RH | 1 | $39.95 | |
| 19 | 9611-081 | DECAL,FRONT SPAR-REAR-GRN LH | 1 | $85.95 | |
| 20 | 4706-942 | BEZEL,INTAKE-RH ORN PTD CLEAR-ASSY | 1 | $88.95 | |
| 20 | 4706-943 | BEZEL,INTAKE-LH ORN PTD CLEAR-ASSY | 1 | $85.95 | |
| 20 | 4706-644 | BEZEL,INTAKE-RH GRN PTD CLEAR-ASSY | 1 | $54.95 | |
| 20 | 4706-645 | BEZEL,INTAKE-LH GRN PTD CLEAR-ASSY | 1 | $56.95 | |
| 21 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 22 | 5606-984 | WINDSHIELD,EXTREME LOW-FLAT BACK | 1 | $217.95 | |
| 23 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 24 | 4706-642 | FACIA,BUMPER-UPPER-BLK PTD CLEAR | 1 | $77.95 | |
| 25 | 2718-942 | R/B 2718-969 | 1 | $168.95 | |
| 25 | 2718-772 | BUMPER,FRONT CLIP-GRN PTD CLR W/ REFL | 1 | $167.95 | |
| 26 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 26 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 5606-465 | FACIA,BUMPER-LWR-MOLD ORN | 1 | $93.95 | |
| 33 | 5606-463 | R/B 5606-462 | 1 | $56.95 | |
| 34 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 34 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
