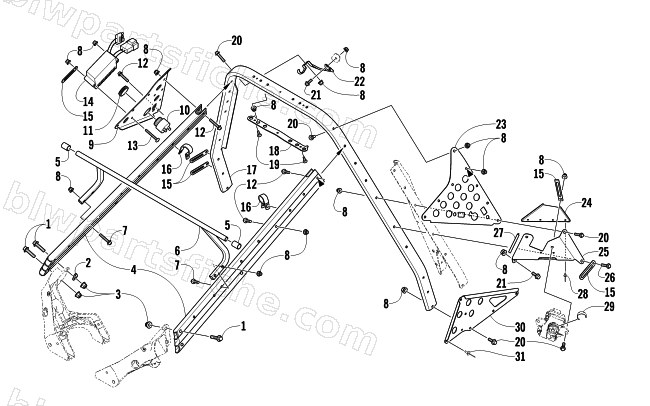

STEERING SUPPORT ASSEMBLY
2011 F8 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 2 | 2612-125 | TAB,MTG-EXHAUST SPRING | 1 | $2.61 | |
| 3 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 4 | 0607-814 | FRAME,UPR-FRT INNER-MACH | 1 | $38.95 | |
| 5 | 1623-900 | SPACER,HOOD CLIP-12.7X15.9X25.4 | 1 | $0.68 | |
| 6 | 4706-356 | SUPPORT, HEADLIGHT-PTD BLK | 1 | $116.95 | |
| 7 | 8408-645 | SCREW,CAP-HFH M6X1.0X45 CL8.8 Z&Y | 1 | $1.50 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 0607-922 | GUSSET, SUPPORT-STEERING-SPAR-RH-FC | 1 | $34.95 | |
| 10 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 11 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 12 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 14 | 0630-322 | REGULATOR/RECTIFIER-ELECTRIC START | 1 | $220.95 | |
| 15 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 16 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 17 | 0605-949 | SUPPORT,STEERING-MACH | 1 | $120.95 | |
| 18 | 5606-137 | PLATE,NUT-STEERING SUPPORT-2 STROKE | 1 | $34.95 | |
| 19 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 20 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 21 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 22 | 4606-687 | BRKT,SUPPORT-RECOIL CUP | 1 | $54.95 | |
| 23 | 0607-809 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-LH | 1 | $54.95 | |
| 24 | 6606-225 | GUARD,SERVO MOTOR | 1 | $6.75 | |
| 25 | 4606-938 | BRKT,SUPPORT-CLUTCH GUARD-2 STROKE | 1 | $20.95 | |
| 26 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 27 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 28 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 29 | 5606-208 | CLIP,SERVO MOTOR | 1 | $29.95 | |
| 30 | 3606-744 | BRKT, OUTER FOOTREST-RH | 1 | $22.01 | |
| 30 | 3606-745 | BRKT, OUTER FOOTREST-LH | 1 | $22.01 | |
| 31 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
