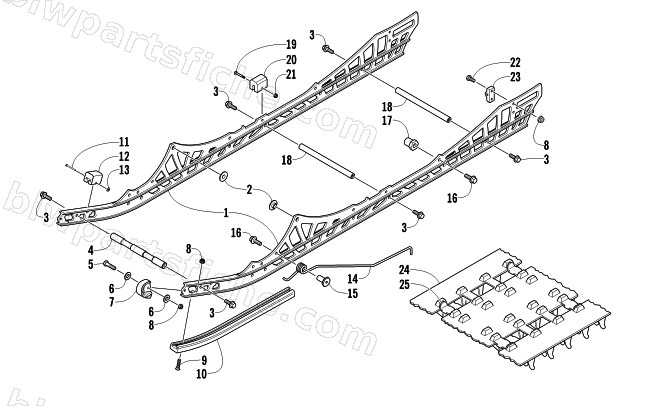

2011 Arctic Cat M8 153 SNO PRO LTD — SLIDE RAIL AND TRACK ASSEMBLY
2011 M8 153 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-396 | RAIL,SUSP-153" FORMED/MACH | 1 | $361.95 | |
| 2 | 2604-733 | INSERT,RAIL-3/8 X 1.00" | 1 | $12.35 | |
| 3 | 1623-502 | SCREW,CAP-HFH 5/16-18X1.25 W/2353 | 1 | $1.78 | |
| 4 | 3604-401 | AXLE, XBRC/LMTR -.785X8.750 (5/16-18) | 1 | $54.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 13 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 14 | 1704-734 | SCRATCHER,ICE-RH-PTD BLK | 1 | $42.95 | |
| 14 | 1704-735 | SCRATCHER,ICE-LH-PTD BLK | 1 | $42.95 | |
| 15 | 5639-941 | KIT,REPL HDWE(5639-897) | 1 | $24.77 | |
| 16 | 1623-566 | SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353 | 1 | $1.64 | |
| 17 | 3604-400 | BUSHING,STOP-REAR ARM (5/16-18) | 1 | $5.51 | |
| 18 | 3604-402 | AXLE,XBRA-.650X8.750(5/16-18) | 1 | $56.95 | |
| 19 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 20 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 21 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 22 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 23 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 24 | 2602-167 | TRACK,POWER CLAW-15X153X2.25(3.0 PITCH) | 1 | $1,573.95 | |
| 25 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
