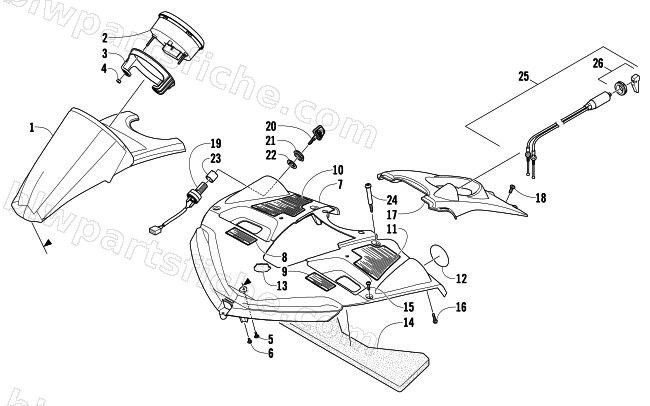

CONSOLE ASSEMBLY
2011 T570 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-575 | HOUSING,SPEEDO-MOLD BLK | 1 | $42.95 | |
| 2 | 0620-357 | SPEEDO/TACH-STANDARD-CALIBRATED (F/C) | 1 | $524.95 | |
| 3 | 0620-322 | BRKT,RETAINER-SPEEDO/TACH | 1 | $9.59 | |
| 4 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 7 | 2718-831 | BASE,CONSOLE-BLK-W/DECAL-2 STK-W/O ACCY | 1 | $140.95 | |
| 8 | 7611-574 | DECAL,CAUTION-FRENCH | 1 | $15.11 | |
| 9 | 7611-575 | DECAL,CAUTION-ENGLISH | 1 | $15.11 | |
| 10 | 8611-848 | DECAL, WARNING-FRENCH | 1 | $16.49 | |
| 11 | 8611-849 | DECAL, WARNING-ENGLISH | 1 | $16.49 | |
| 12 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 | |
| 13 | 0617-558 | FOAM,CONSOLE-FRT | 1 | $30.95 | |
| 14 | 0617-559 | FOAM,CONSOLE-REAR | 1 | $30.95 | |
| 15 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 5606-146 | CLOSE OFF,HANDLEBAR-F/C-MOLD BLK | 1 | $34.95 | |
| 18 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 19 | 0609-806 | SWITCH,OPEN IGNITION-ELECT START | 1 | $88.95 | |
| 21 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 22 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 24 | 1623-669 | SCREW,SHOULDER - TSTRH M6X 1.0 X 80 MM | 1 | $4.26 | |
| 25 | 0687-208 | CABLE,CHOKE-DUAL-'08 570 | 1 | $94.95 | |
| 26 | 0687-219 | KIT,CHOKE LEVER-'08 570 | 1 | $23.39 |
