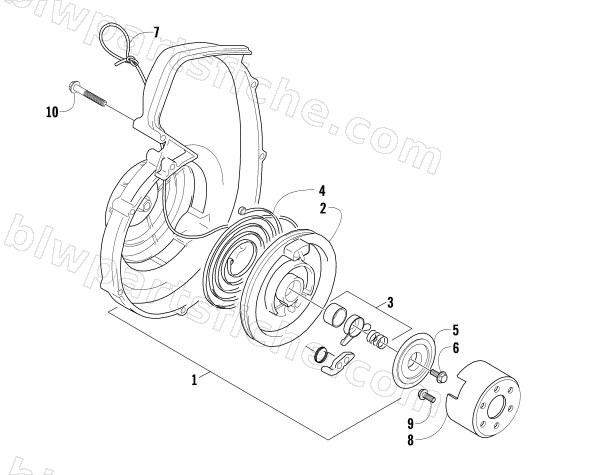

RECOIL STARTER
2011 T570 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-688 | STARTER ASSY,RECOIL | 1 | $314.95 | |
| 2 | 3006-090 | REEL,RECOIL '02 570 F/C | 1 | $68.95 | |
| 3 | 3006-091 | RACHET SET,RECOIL '02 570 F/C | 1 | $49.95 | |
| 4 | 3007-487 | SPRING,SPIRAL | 1 | $89.95 | |
| 5 | 3006-092 | FRICTION PLATE, RECOIL '02 570 F/C | 1 | $29.95 | |
| 6 | 3006-093 | BOLT SET,RECOIL '02 570 F/C | 1 | $12.35 | |
| 7 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 8 | 3006-020 | PULLEY,STARTER | 1 | $88.95 | |
| 9 | 3006-463 | BOLT, 8X18.5 | 1 | $4.26 | |
| 10 | 3007-488 | BOLT | 1 | $3.85 |
