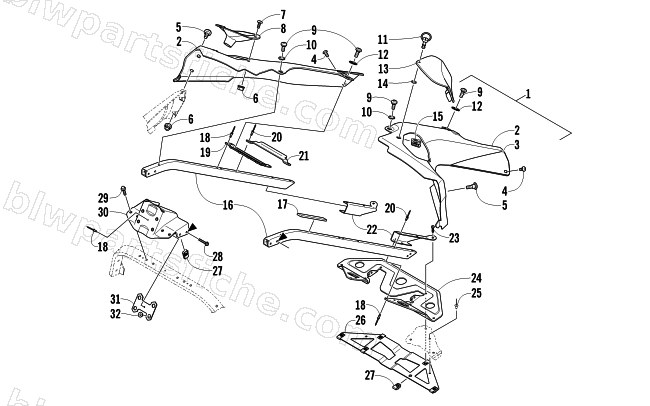

2011 Arctic Cat T570 TOURING — SEAT SUPPORT ASSEMBLY
2011 T570 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-994 | SPAR,REAR-RH-WHT-F/C-W/DECALS | 1 | $53.95 | |
| 1 | 2718-995 | SPAR,REAR-LH-WHT-F/C-W/DECALS | 1 | $51.95 | |
| 2 | 4706-586 | SPAR,REAR-RH W/RECOIL-F/C RTD-WHITE | 1 | $49.95 | |
| 2 | 4706-587 | SPAR,REAR-LH W/OIL FILL-F/C RTD-WHITE | 1 | $49.95 | |
| 3 | 9611-208 | DECAL,REAR SPAR-RH | 1 | $12.35 | |
| 3 | 9611-209 | DECAL,REAR SPAR-LH | 1 | $12.35 | |
| 4 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 8 | 5606-161 | CUP, RECOIL-W/INSERT | 1 | $45.95 | |
| 9 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 10 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 11 | 1623-746 | STUD, 1/4 TURN-9.8MM | 1 | $6.75 | |
| 12 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 13 | 5606-199 | COVER,ACCESS-OIL TANK-WHITE | 1 | $27.95 | |
| 14 | 1623-747 | RETAINER, RING-SPLIT | 1 | $2.88 | |
| 15 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 16 | 5606-092 | TUBE,SUPPORT-NON-ADJUST-RH | 1 | $77.95 | |
| 16 | 5706-049 | TUBE,SUPPORT-NON ADJUST-LH MACH | 1 | $54.95 | |
| 17 | 5606-682 | BUMPER, FUEL TANK | 1 | $3.71 | |
| 18 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 19 | 4606-329 | BRKT,CROSSOVER | 1 | $29.95 | |
| 20 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 21 | 6606-096 | BRKT,CROSSOVER | 1 | $15.11 | |
| 22 | 5606-096 | BRKT,NON-ADJUST-SEATBASE RH | 1 | $29.95 | |
| 22 | 5606-097 | BRKT,NON-ADJUST-SEATBASE LH | 1 | $29.95 | |
| 23 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 24 | 5606-094 | PLATE,SUPPORT-LOWER | 1 | $57.95 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 26 | 3706-884 | PLATE, BRACE-LOWER-MFG ASSY-NON-ADJUST | 1 | $30.95 | |
| 27 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 28 | 8408-535 | SCREW, CAP-HFH M5X0.8X35 CL8.8 Z&Y | 1 | $2.06 | |
| 29 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 30 | 4606-328 | BRKT,SUPPORT-UPPER-SPR-FABR | 1 | $105.95 | |
| 31 | 0605-948 | BRKT,NUT HOLDER | 1 | $20.63 | |
| 32 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
