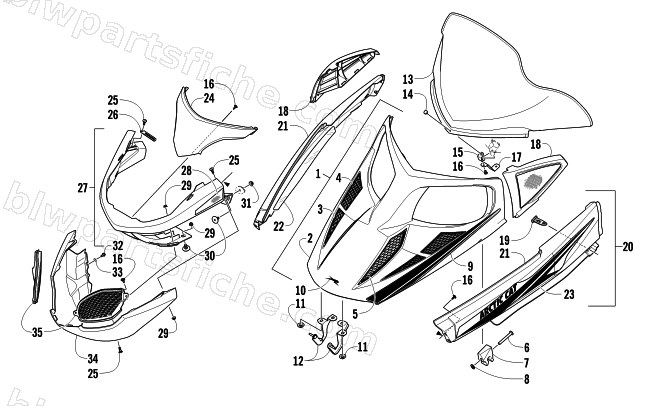

2011 Arctic Cat TZ1 TOURING — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2011 TZ1 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-967 | LID,HOOD-WHT W/DECALS | 1 | $266.95 | |
| 2 | 7800-957 | LID,HOOD-WHT-MFG ASSY | 1 | $187.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 7 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 7 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 8 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 9 | 9611-204 | DECAL,HOOD LID-RH | 1 | $49.95 | |
| 9 | 9611-205 | DECAL,HOOD LID-LH | 1 | $49.95 | |
| 10 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 12 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 13 | 5606-962 | WINDSHIELD,HIGH-TINT | 1 | $224.95 | |
| 14 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 15 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 16 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 17 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 18 | 5606-940 | BEZEL,INTAKE-RH-WHT ASSY | 1 | $54.95 | |
| 18 | 5606-941 | BEZEL,INTAKE-LH-WHT ASSY | 1 | $54.95 | |
| 19 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 20 | 2718-998 | SPAR,FRONT-RH-WHT-W/DECALS (TZ1) | 1 | $55.95 | |
| 20 | 2718-993 | SPAR,FRONT-LH-WHT-W/DECALS (T570) | 1 | $71.95 | |
| 21 | 5606-046 | SPAR, FRONT-RH-WHITE | 1 | $43.95 | |
| 21 | 5606-047 | SPAR, FRONT-LH-WHITE | 1 | $48.95 | |
| 22 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 23 | 9611-206 | DECAL,FRT SPAR-"ARCTIC CAT"- RH | 1 | $167.95 | |
| 23 | 9611-207 | DECAL,FRT SPAR-"ARCTIC CAT"- LH | 1 | $163.95 | |
| 24 | 5606-991 | FACIA,BUMPER-UPPER-MOLD WHITE | 1 | $147.95 | |
| 25 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 26 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 27 | 2718-925 | BUMPER,FRONT CLIP-MOLD WHT W/ REFL | 1 | $163.95 | |
| 28 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 28 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 29 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 30 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 31 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 32 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 33 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 34 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 35 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 35 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
