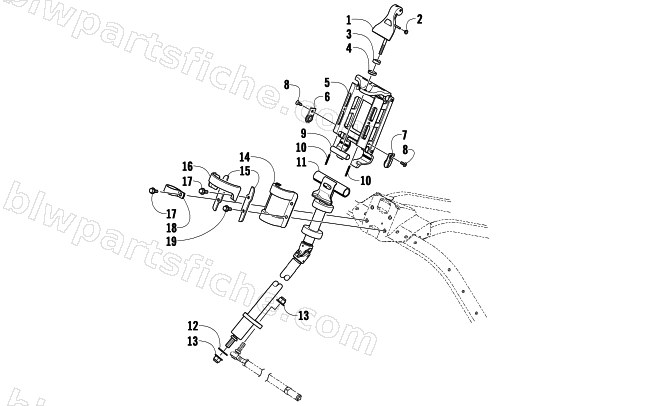

STEERING POST ASSEMBLY
2011 Z1 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-191 | LEVER, CAM -ADJ RISER-ASSY-5" | 1 | $54.95 | |
| 2 | 0605-839 | KNOB, LOCK PIN | 1 | $4.26 | |
| 3 | 0605-837 | WASHER, CAM ADJ RISER | 1 | $3.44 | |
| 4 | 0605-828 | CUP, CAM ADJ RISER | 1 | $4.26 | |
| 5 | 1705-268 | BLOCK,RISER-S/P ASSY | 1 | $227.59 | |
| 6 | 0605-832 | RETAINER, RISER BLOCK-RH | 1 | $82.95 | |
| 7 | 0605-833 | RETAINER, RISER BLOCK-LH | 1 | $54.95 | |
| 8 | 1623-018 | SCREW,SELF TAP-TSFH 10-16X.50 TYPE B | 1 | $0.26 | |
| 9 | 0605-831 | END, LOCK ROD-ADJ RISER | 1 | $34.95 | |
| 10 | 0605-840 | SPRING, BOTTOM CAP(ADJ RISER) | 1 | $32.95 | |
| 11 | 1705-351 | POST,STEERING-PTD BLK (ADJUSTABLE) | 1 | $316.95 | |
| 12 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 13 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 14 | 1705-087 | BRKT, BEARING-UPPER-PTD | 1 | $29.95 | |
| 15 | 1705-201 | PLATE,BEARING BRACKET-PTD BLK | 1 | $6.75 | |
| 16 | 0605-993 | BRKT,WIRE PROTECTOR | 1 | $16.49 | |
| 17 | 8408-621 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y W/2353 | 1 | $0.95 | |
| 18 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 19 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 |
