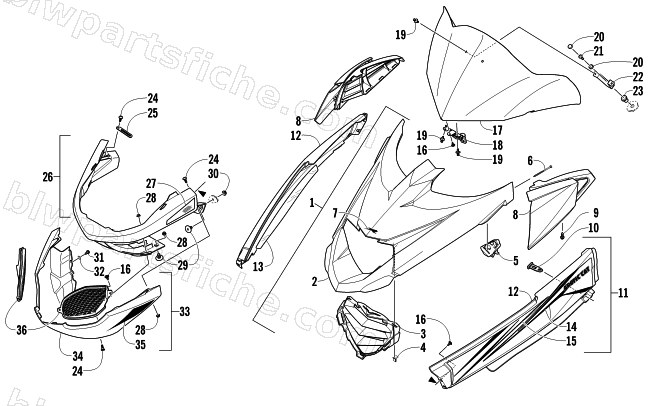

2011 Arctic Cat Z1 TURBO EXT — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2011 Z1 TURBO EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-048 | LID,HOOD-BLK/CLR-TURBO-W/ DECALS | 1 | $275.95 | |
| 2 | 7800-520 | LID, HOOD-PTD BLK-TURBO-MFG ASSY | 1 | $197.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 8 | 6606-230 | BEZEL,INTAKE-RH BLK/CLR-ASSY(TURBO) | 1 | $109.95 | |
| 8 | 6606-231 | BEZEL,INTAKE-LH BLK/CLR-ASSY(TURBO) | 1 | $109.95 | |
| 9 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 10 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 11 | 3718-046 | SPAR,FRONT-RH-BLK/CLR-W/DECALS | 1 | $125.95 | |
| 11 | 3718-047 | SPAR,FRONT-LH-BLK/CLR-W/DECALS | 1 | $125.95 | |
| 12 | 4706-610 | SPAR,FRONT BLK-RH-PTD CLEAR | 1 | $117.95 | |
| 12 | 4706-611 | SPAR,FRONT BLK-LH-PTD CLEAR | 1 | $117.95 | |
| 13 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 14 | 9611-222 | DECAL,FRONT SPAR-REAR-RH | 1 | $88.95 | |
| 14 | 9611-223 | DECAL,FRONT SPAR-REAR-LH | 1 | $73.95 | |
| 15 | 9611-220 | DECAL,FRT SPAR-FORWARD-GRN RH | 1 | $38.95 | |
| 15 | 9611-221 | DECAL,FRT SPAR-FORWARD-GRN LH | 1 | $38.95 | |
| 16 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 17 | 6606-024 | WINDSHIELD,TURBO EXTREME LOW-FLAT BLACK | 1 | $224.95 | |
| 17 | 6606-274 | WINDSHIELD,TURBO-MID TINT-W\HOLES | 1 | $273.95 | |
| 18 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 20 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 22 | 3718-001 | BUMPER,FRONT CLIP-WHT/CLR W/ REFL | 1 | $171.95 | |
| 22 | 5639-518 | SUPPORT,WINDSHIELD-KIT (TURBO MID) | 1 | $23.39 | |
| 23 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 23 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 25 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 26 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 27 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 28 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 29 | 3718-045 | FACIA, BUMPER-LWR-WHT-W/DECALS | 1 | $196.95 | |
| 30 | 4706-965 | FACIA,BUMPER-LWR WHT-PTD CLEAR | 1 | $203.95 | |
| 31 | 9611-160 | DECAL,LWR FIA-FRT BUMPER-RH | 1 | $29.95 | |
| 31 | 9611-161 | DECAL,LWR FIA-FRT BUMPER-LH | 1 | $26.95 | |
| 32 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 32 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
