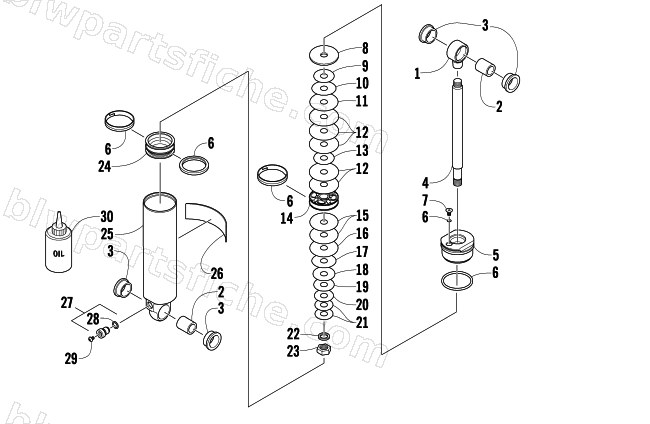

2011 Arctic Cat Z1 TURBO EXT — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2011 Z1 TURBO EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-872 | SHOCK,REAR ARM-ZERO PRO-2" BORE-15.12" | 1 | $233.95 | |
| 0 | 1704-830 | SHOCK,REAR ARM-ZERO PRO-15.13" | 1 | $162.95 | |
| 1 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 4 | 3604-510 | SHAFT,SHOCK-.498 X 7.750" | 1 | $99.95 | |
| 4 | 3604-481 | SHAFT,CHROME-.498" X 7.685" | 1 | $99.95 | |
| 5 | 2604-627 | BEARING,ENDCAP-.498"X2"OD - W/BLEED-ASSY | 1 | $124.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 2604-880 | SEAL/BEARING-REBUILD KIT-803-00-108 | 1 | $71.95 | |
| 6 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 7 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 2603-466 | WASHER,TOPOUT-1.570ODX.378IDX.093TH | 1 | $17.87 | |
| 8 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 9 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 9 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 10 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 10 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 11 | 2604-647 | VALVE,1.425 X .010 (3/8ID) | 1 | $12.95 | |
| 11 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 12 | 2604-631 | VALVE,1.600 X .010 (3/8ID) | 1 | $16.95 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-339 | VALVE,1.000X.006(3/8ID) | 1 | $6.89 | |
| 13 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 14 | 2604-645 | PISTON,DAMPING-1.834 BORE .055 ORIFACE | 1 | $71.95 | |
| 15 | 2604-633 | VALVE,1.425 X .015 (3/8ID) | 1 | $12.95 | |
| 15 | 2604-412 | PISTON,.055 DIA HOLE | 1 | $58.95 | |
| 16 | 2604-632 | VALVE,1.425 X .012 (3/8ID) | 1 | $12.95 | |
| 16 | 0603-883 | VALVE, SHOCK 1.250 X.012(3/8ID) | 1 | $6.95 | |
| 17 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 18 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 19 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 19 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 20 | 0603-886 | VALVE, SHOCK .900 X.015 | 1 | $14.95 | |
| 20 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 21 | 0603-885 | VALVE, SHOCK .800 X.015 | 1 | $6.95 | |
| 21 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 22 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 23 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 3604-482 | BODY,SHOCK-ALUM-1.459 BORE- 7.670 TLG | 1 | $251.95 | |
| 24 | 2604-886 | PISTON,IFP- 1.834" NO BLEED-ASSY | 1 | $128.95 | |
| 24 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 25 | 3604-511 | BODY,ALUM-IMP EXTR -1.834 BORE X 9.33TLG | 1 | $465.95 | |
| 26 | 2604-889 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $38.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 29 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 30 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
