2011 Arctic Cat Z1 TURBO EXT — SEAT ASSEMBLY
2011 Z1 TURBO EXT

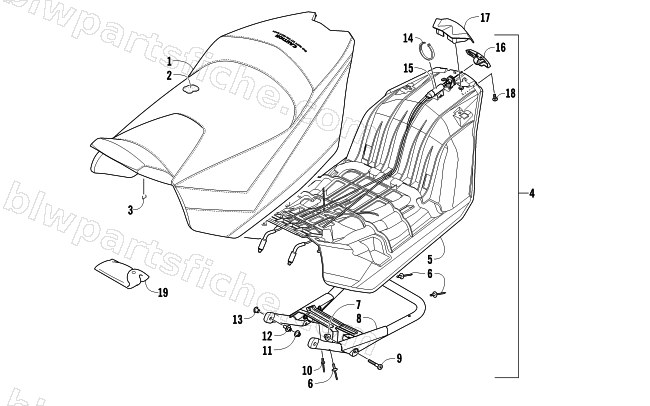

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4706-945 | SEAT,MFG ASSY-GRN ADJUSTABLE | 1 | $1,095.95 | |
| 0 | 4706-977 | SEAT,MFG ASSY-GRN ADJUSTABLE/HEATED(EXT) | 1 | $1,356.95 | |
| 1 | 4706-944 | COVER,SEAT-GRN ADJUSTABLE | 1 | $445.95 | |
| 1 | 4706-976 | COVER,SEAT-GRN-ADJ/HEATED (EXT) | 1 | $450.95 | |
| 2 | 0617-570 | FOAM,SEAT (105-115 ILD) .50@5.0 | 1 | $164.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 3 | 0609-869 | PAD, SEAT HEATER | 1 | $192.95 | |
| 4 | 5706-010 | BASE,SEAT-ASSY | 1 | $497.95 | |
| 5 | 5606-591 | SEAT BASE - PLASTIC | 1 | $197.95 | |
| 6 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 7 | 1623-524 | WASHER,SLIDE-BOTTOM | 1 | $2.75 | |
| 8 | 3706-886 | FRAME,SEAT-MACH | 1 | $193.95 | |
| 9 | 4606-338 | PIN,SLIDE-BOTTOM | 1 | $7.95 | |
| 10 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 11 | 1623-525 | WASHER,SLIDE-TOP | 1 | $2.75 | |
| 12 | 4606-339 | PIN,SLIDE-TOP | 1 | $17.87 | |
| 13 | 1623-542 | NUT,SLIDE-TOP-M8X1.25 | 1 | $22.01 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 5606-592 | CABLE,SEAT ADJUSTER | 1 | $191.95 | |
| 16 | 4606-380 | LEVER,SEAT ADJUSTER CABLE | 1 | $13.73 | |
| 17 | 4606-345 | HOUSING,CABLE-SEAT ADJUSTER | 1 | $15.11 | |
| 18 | 1623-609 | SCREW,PT THREAD FORMING-K60-2.69X22MM | 1 | $3.16 | |
| 19 | 4706-886 | BAG,TOOL KIT-ASSY | 1 | $32.95 |
