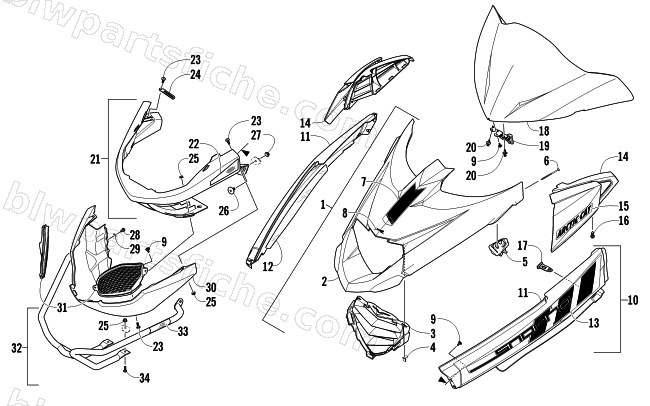

2011 Arctic Cat Z1 TURBO LXR LTD — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2011 Z1 TURBO LXR LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-081 | LID,HOOD-SL GRN-TURBO W/DECALS | 1 | $435.95 | |
| 2 | 7800-852 | LID,HOOD-SL GRN-TURBO-MFG ASSY | 1 | $194.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 9611-306 | DECAL,HOOD LID-SL GRN-CREST TURBO | 1 | $49.95 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 3718-074 | SPAR,FRONT-RH-SL GRN-W/DECALS | 1 | $135.95 | |
| 10 | 3718-075 | SPAR,FRONT-LH-SL GRN-W/DECALS | 1 | $122.95 | |
| 11 | 5706-016 | SPAR,FRONT-RH-PTD SL GRN | 1 | $134.95 | |
| 11 | 5706-017 | SPAR,FRONT-LH-PTD SL GRN | 1 | $122.95 | |
| 12 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 13 | 9611-302 | DECAL,FRT SPAR-SL GRN-RH "SNO PRO" | 1 | $88.95 | |
| 13 | 9611-303 | DECAL,FRT SPAR-SL GRN-LH "SNO PRO" | 1 | $56.95 | |
| 14 | 6606-260 | BEZEL,INTAKE-RH PTD SL GRN-ASSY | 1 | $77.95 | |
| 14 | 6606-261 | BEZEL,INTAKE-LH PTD SL GRN-ASSY | 1 | $74.95 | |
| 15 | 9611-307 | DECAL,INTAKE DUCT-"ARCTIC CAT" TURBO | 1 | $27.95 | |
| 16 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 17 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 18 | 6606-024 | WINDSHIELD,TURBO EXTREME LOW-FLAT BLACK | 1 | $224.95 | |
| 19 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 3718-072 | BUMPER,FRT CLIP-SL GRN-W/REF DECALS | 1 | $164.95 | |
| 22 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 22 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 23 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 24 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 25 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 26 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 27 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 28 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 29 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 30 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 31 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 31 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 32 | 5706-079 | BUMPER,SPORT-FRT-W/DECAL (SL GRN) | 1 | $180.95 | |
| 33 | 9611-395 | DECAL,REFLECTOR-AMBER | 1 | $34.95 | |
| 34 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 |
