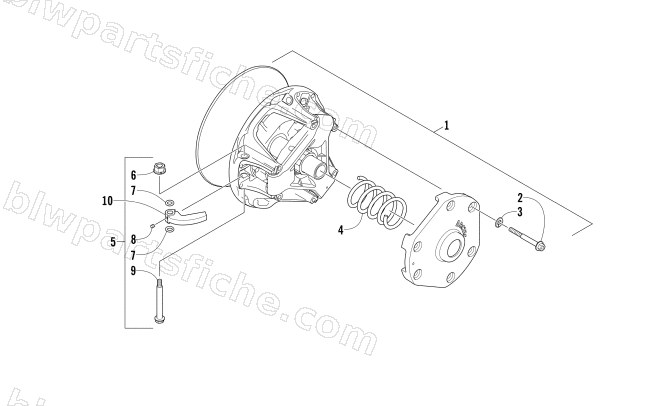

DRIVE CLUTCH
2011 Z1 TURBO SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0746-228 | CLUTCH,DRIVE-UNCAL-8.25" 35MM/S/YEL | 1 | $526.95 | |
| 2 | 0646-431 | SCREW,CAP-FH SHOULDER | 1 | $1.92 | |
| 3 | 0646-430 | WASHER,SPR LOCK-M8 | 1 | $0.40 | |
| 4 | 0646-229 | SPRING,CLUTCH-YELLOW/WHITE | 1 | $54.95 | |
| 5 | 4639-674 | KIT,CAM ARM REPAIR '05-'09(WIDE) | 1 | $58.95 | |
| 6 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 7 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 8 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 9 | 0646-747 | PIN, CAM ARM | 1 | $17.87 | |
| 10 | 0746-821 | ARM,CAM-WIDE (GHR)-82 GRAM-W/SET SCREW | 1 | $13.73 |
