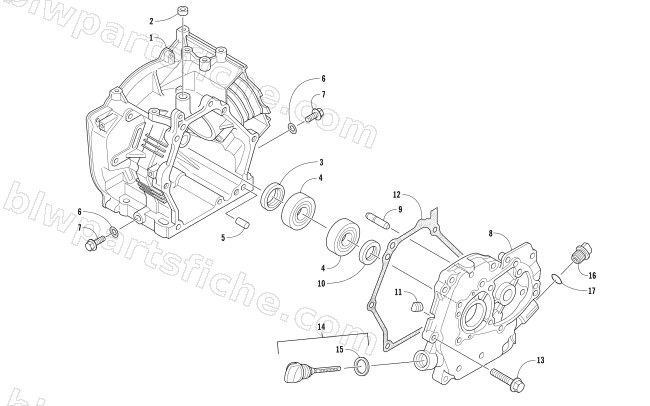

2012 Arctic Cat AC SNO PRO 120 — CRANKCASE/COVER ASSEMBLY
2012 AC SNO PRO 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-024 | CRANKCASE | 1 | $545.95 | |
| 2 | 3020-111 | SEAL, OIL | 1 | $10.97 | |
| 3 | 3020-110 | SEAL, OIL | 1 | $22.01 | |
| 4 | 3020-113 | BEARING | 1 | $54.95 | |
| 5 | 3020-127 | PIN, DOWEL | 1 | $2.88 | |
| 6 | 3020-101 | GASKET | 1 | $3.57 | |
| 7 | 3020-116 | SCREW, CAP | 1 | $6.47 | |
| 8 | 3020-062 | COVER, CRANKCASE | 1 | $288.95 | |
| 9 | 3020-040 | SHAFT, FLYWEIGHT | 1 | $12.35 | |
| 10 | 3020-109 | SEAL, OIL | 1 | $19.25 | |
| 11 | 3020-100 | PLUG | 1 | $4.40 | |
| 12 | 3020-063 | GASKET, CRANKCASE COVER | 1 | $33.95 | |
| 13 | 3020-123 | SCREW, CAP | 1 | $6.47 | |
| 14 | 3020-061 | STICK, OIL LEVEL | 1 | $12.35 | |
| 15 | 3020-102 | GASKET | 1 | $5.51 | |
| 16 | 3020-060 | PLUG, OIL | 1 | $13.73 | |
| 17 | 3020-112 | O-RING | 1 | $3.44 |
