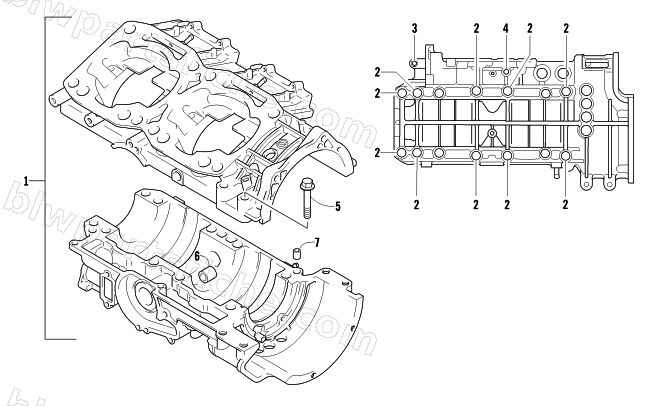

2012 Arctic Cat ARCTIC CAT SNO PRO 500 — CRANKCASE ASSEMBLY
2012 ARCTIC CAT SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-612 | CRANKCASE ASSY | 1 | $1,354.95 | |
| 2 | 3006-483 | BOLT | 1 | $19.25 | |
| 3 | 3007-409 | BOLT | 1 | $3.16 | |
| 4 | 3007-461 | BOLT | 1 | $5.09 | |
| 5 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 6 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 7 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 |
