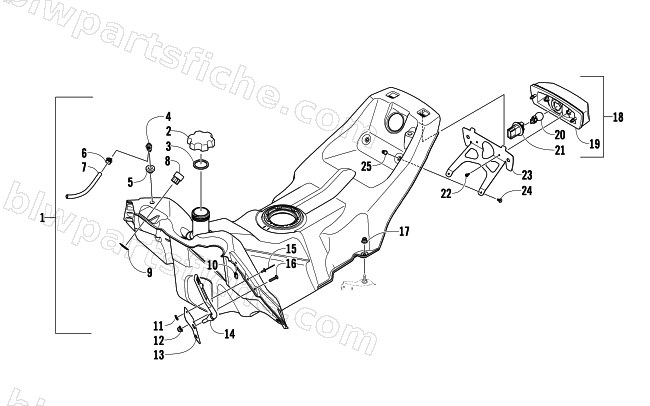

GAS TANK AND TAILLIGHT ASSEMBLY
2012 ARCTIC CAT SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-939 | TANK,GAS-S/P-11 GAL/EFI-ASSY | 1 | $688.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 7 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 7 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 8 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 9 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 10 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 11 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 12 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 13 | 4706-352 | BRKT,MTG-HOOD-PTD BLK | 1 | $20.63 | |
| 14 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 15 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 16 | 8470-525 | SCREW,MACH-TSPNH M5X.8X25 CL8.8 Z&Y | 1 | $2.47 | |
| 17 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 19 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 20 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 21 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 22 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 23 | 5606-968 | BRKT,MTG-TAILLIGHT | 1 | $43.95 | |
| 24 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 |
