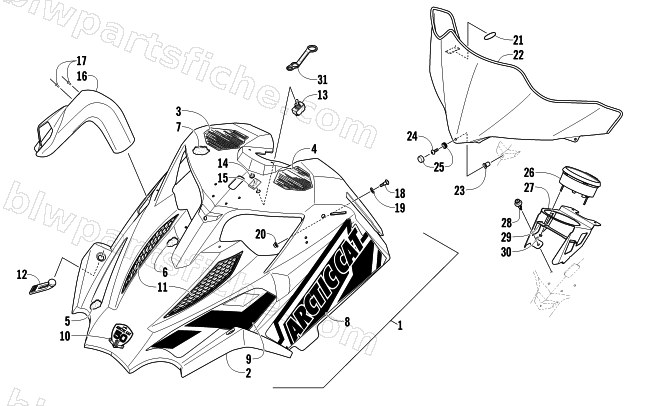

2012 Arctic Cat ARCTIC CAT SNO PRO 500 — HOOD AND WINDSHIELD ASSEMBLY
2012 ARCTIC CAT SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-148 | HOOD,W/DECALS | 1 | $682.95 | |
| 2 | 3718-094 | HOOD,W/O DECALS | 1 | $524.95 | |
| 3 | 8611-302 | DECAL,CAUTION/WARNING-FRENCH-RH | 1 | $20.63 | |
| 4 | 8611-303 | DECAL,CAUTION/WARNING-ENGLISH-LH | 1 | $20.63 | |
| 5 | 0617-576 | FOAM,HOOD-RH | 1 | $16.49 | |
| 5 | 0617-577 | FOAM,HOOD-LH | 1 | $42.95 | |
| 6 | 0617-579 | FOAM,HOOD-CENTER | 1 | $37.95 | |
| 7 | 0617-578 | FOAM,HOOD-REAR | 1 | $37.95 | |
| 8 | 9611-486 | DECAL,HOOD-"ARCTIC CAT" RH | 1 | $41.95 | |
| 8 | 9611-487 | DECAL,HOOD-"ARCTIC CAT" LH | 1 | $118.95 | |
| 9 | 9611-488 | DECAL,HOOD-UPR RH | 1 | $24.77 | |
| 9 | 9611-489 | DECAL,HOOD-UPR LH | 1 | $24.77 | |
| 10 | 9611-603 | DECAL,EMBLEM-50TH ANNIVERSARY-GRN | 1 | $32.95 | |
| 11 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 11 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 12 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 13 | 0609-904 | SWITCH,TOGGLE-SPST | 1 | $24.77 | |
| 14 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 15 | 9611-054 | DECAL,HEADLIGHT | 1 | $15.11 | |
| 16 | 5606-641 | DUCT,BRAKE | 1 | $78.95 | |
| 17 | 0423-425 | RIVET,BLIND (3/16 X .157-.472 GRIP) | 1 | $1.23 | |
| 18 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 6606-279 | WINDSHIELD,SEMI MID-RACE | 1 | $159.95 | |
| 23 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 24 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 0620-353 | SPEEDO,AC 500 R CALIB-STANDARD | 1 | $524.95 | |
| 27 | 4706-526 | BRKT,MTG-SPEEDO/TACH-PTD BLK | 1 | $62.95 | |
| 28 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 29 | 4706-527 | PLATE,BACKER-SPEEDO/TACH-PTD BLK | 1 | $34.95 | |
| 30 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 31 | 0644-566 | WRENCH,RETAINING NUT-TOGGLE SWITCH | 1 | $20.95 |
