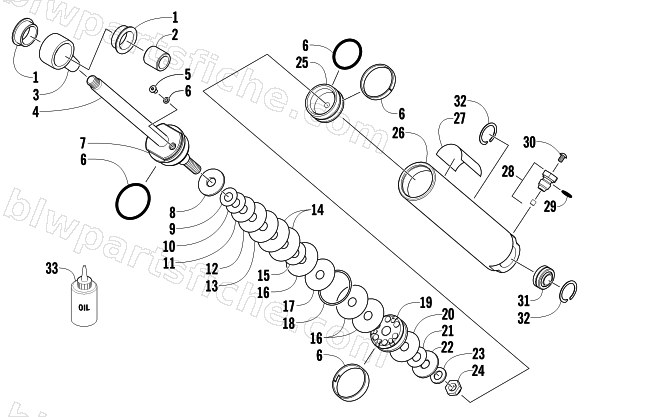

2012 Arctic Cat ARCTIC CAT SNO PRO 500 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2012 ARCTIC CAT SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-040 | SHOCK,RR ARM-FOX | 1 | $413.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 4 | 2604-622 | SHAFT,SHOCK-.498 X 7.260 | 1 | $149.95 | |
| 5 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 6 | 2604-880 | SEAL/BEARING-REBUILD KIT-803-00-108 | 1 | $71.95 | |
| 7 | 2604-627 | BEARING,ENDCAP-.498"X2"OD - W/BLEED-ASSY | 1 | $124.95 | |
| 8 | 2603-466 | WASHER,TOPOUT-1.570ODX.378IDX.093TH | 1 | $17.87 | |
| 9 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 10 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 11 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 12 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 13 | 2604-647 | VALVE,1.425 X .010 (3/8ID) | 1 | $12.95 | |
| 14 | 2604-631 | VALVE,1.600 X .010 (3/8ID) | 1 | $16.95 | |
| 15 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 16 | 3604-577 | VALVE,1.600 X .008 (3/8ID) | 1 | $10.95 | |
| 17 | 3604-611 | VALVE,1.425 OD X .006 X 3/8 ID | 1 | $12.95 | |
| 18 | 2604-692 | VALVE,RING SHIM-1.600ODX1.435IDX.012THK | 1 | $13.95 | |
| 19 | 2604-645 | PISTON,DAMPING-1.834 BORE .055 ORIFACE | 1 | $71.95 | |
| 20 | 2604-632 | VALVE,1.425 X .012 (3/8ID) | 1 | $12.95 | |
| 21 | 0603-893 | VALVE, SHOCK 1.00X.004(040-04-100) | 1 | $7.95 | |
| 22 | 3604-610 | WASHER,TOP OUT-1.40 X .378 X.080 GROUND | 1 | $6.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2604-886 | PISTON,IFP- 1.834" NO BLEED-ASSY | 1 | $128.95 | |
| 26 | 3604-579 | BODY,ALUM-IMP EXT-1.834X9.183 W/GROOVES | 1 | $418.95 | |
| 27 | 2604-889 | DECAL,SHOCK BODY-ZERO PRO-6.250X1.750 | 1 | $38.95 | |
| 28 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 29 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 32 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 33 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
