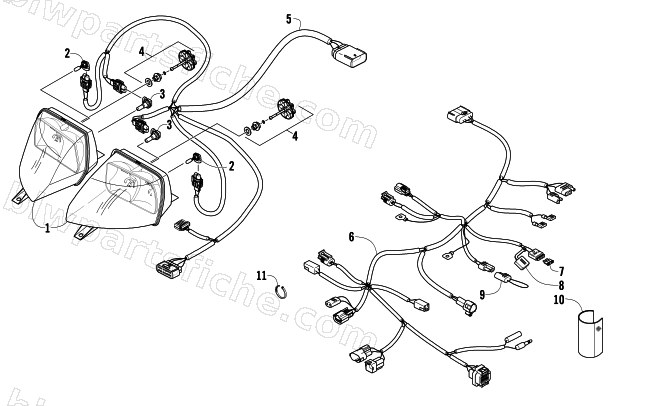

HEADLIGHT AND WIRING ASSEMBLIES
2012 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-872 | HEADLIGHT,RH-ECONOMY-ASSY | 1 | $251.95 | |
| 1 | 0609-873 | HEADLIGHT,LH-ECONOMY-ASSY | 1 | $251.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-831 | BULB, HIGH BEAM-H8 | 1 | $50.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-633 | HARNESS,CONSOLE-F/C | 1 | $178.95 | |
| 6 | 1686-612 | HARNESS, MAIN (2011 570 XT) | 1 | $450.95 | |
| 7 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 9 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 10 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
