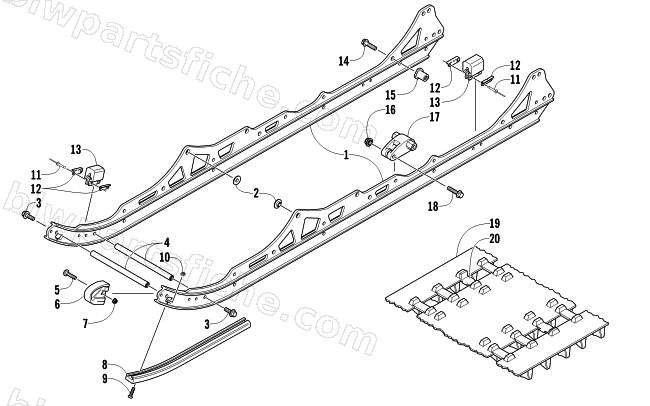

SLIDE RAIL AND TRACK ASSEMBLY
2012 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-142 | SUSPENSION,REAR-XT OS-ASSY | 1 | $5,291.95 | |
| 0 | 2704-056 | SUSPENSION,REAR-XT ARTICULATED-MFG ASSY | 1 | $5,291.95 | |
| 1 | 3604-457 | RAIL,SUSP-156"-MACH | 1 | $263.95 | |
| 2 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 3 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 4 | 3604-425 | AXLE, ALUM-M8X344.55 | 1 | $43.95 | |
| 5 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 6 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 3604-424 | WEARSTRIP, SLIDE RAIL-51.38" (1305MM) | 1 | $34.95 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 13 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 14 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 15 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 3604-513 | BLOCK,SPRING TENSION | 1 | $17.87 | |
| 18 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 19 | 2602-358 | TRACK, 20X154X1.375 2.86 PITCH | 1 | $1,477.95 | |
| 20 | 2602-386 | CLIP,GUIDE | 1 | $3.57 |
