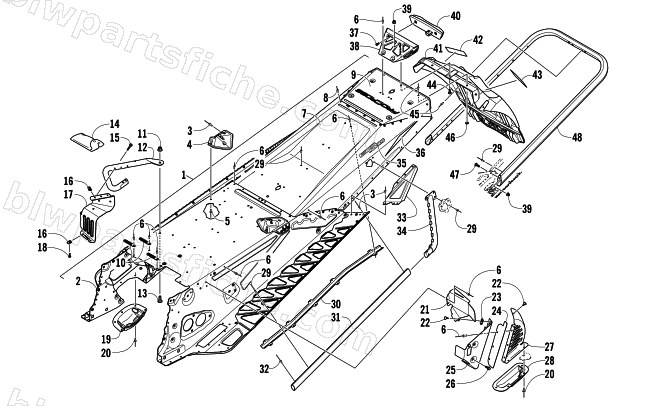

2012 Arctic Cat F 1100 SNO PRO ANNIVERSARY — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2012 F 1100 SNO PRO ANNIVERSARY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-539 | CHASSIS-128" 4 STRK-ASSY-PTD BLK | 1 | $2,501.95 | |
| 1 | 1707-696 | TUNNEL,HP-S/P ASSY-PTD BLK | 1 | $1,077.95 | |
| 2 | 1707-691 | TUNNEL,FRONT-ASSY-PTD BLK | 1 | $659.95 | |
| 3 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 4 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 4 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 5 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 6 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 7 | 1707-694 | TUNNEL,REAR-HI PERF-PTD BLK | 1 | $456.95 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 1707-695 | TUNNEL CLOSEOFF-128-PTD BLK | 1 | $42.95 | |
| 10 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 12 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 13 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 14 | 0744-064 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $67.95 | |
| 15 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 16 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 17 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 17 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 18 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 19 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 20 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 21 | 2602-436 | MOUNT,CLUTCH GUARD | 1 | $46.95 | |
| 22 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 23 | 1623-052 | NUT,U | 1 | $0.95 | |
| 24 | 1707-639 | GUARD,TOE-PTD BLK | 1 | $12.35 | |
| 25 | 1607-118 | COVER,SHIELD-BRAKE CALIPER | 1 | $34.95 | |
| 26 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 27 | 1707-563 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $70.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 30 | 0630-274 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 31 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 32 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 33 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 33 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 34 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 34 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 35 | 9611-612 | DECAL,SNO PRO (ANV) | 1 | $37.95 | |
| 36 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 37 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 38 | 0730-159 | HOUSING,TAILLIGHT-PTD BLK | 1 | $26.95 | |
| 39 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 40 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 41 | 6606-123 | FLAP, SNOW-F/XF-BLK | 1 | $85.95 | |
| 42 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 43 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 44 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 45 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 46 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 47 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 48 | 1707-488 | BUMPER,REAR-128"-PTD BLK | 1 | $136.95 |
