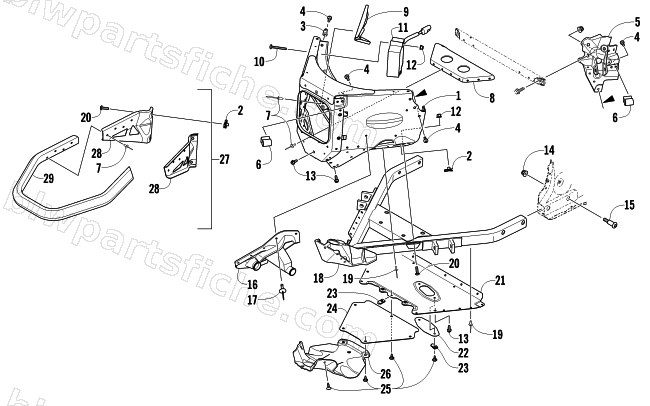

FRONT BUMPER AND FRAME ASSEMBLY
2012 F 1100 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-181 | KIT,FRT PANEL-NA/800 ASSY | 1 | $544.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 4 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 5 | 1707-668 | HOUSING,SHOCK MOUNT-UPR RH-PTD BLK | 1 | $101.95 | |
| 5 | 1707-669 | HOUSING,SHOCK MOUNT-UPR LH-PTD BLK | 1 | $101.95 | |
| 6 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 2707-496 | KIT,STEERING MTG | 1 | $45.95 | |
| 9 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 10 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 11 | 0630-288 | REGULATOR, 3 PHASE-40A DC | 1 | $188.95 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 14 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 15 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 16 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 16 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 17 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 18 | 1707-843 | R/B 3707-131 | 1 | $447.95 | |
| 19 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 20 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 21 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 22 | 1607-108 | COVER,OIL DRAIN-4 STRK | 1 | $24.77 | |
| 23 | 1623-052 | NUT,U | 1 | $0.95 | |
| 24 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 25 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 26 | 6606-953 | PLATE,SKID-CENTER-KIT | 1 | $24.77 | |
| 27 | 1707-597 | BUMPER,FRT-GRN-ASSY | 1 | $109.95 | |
| 27 | 1707-596 | BUMPER,FRT-BLK-ASSY | 1 | $109.95 | |
| 28 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 28 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 29 | 1707-579 | TUBE,FRT BUMPER-PTD GRN | 1 | $74.95 | |
| 29 | 1707-578 | TUBE,FRT BUMPER-PTD BLK | 1 | $74.95 |
