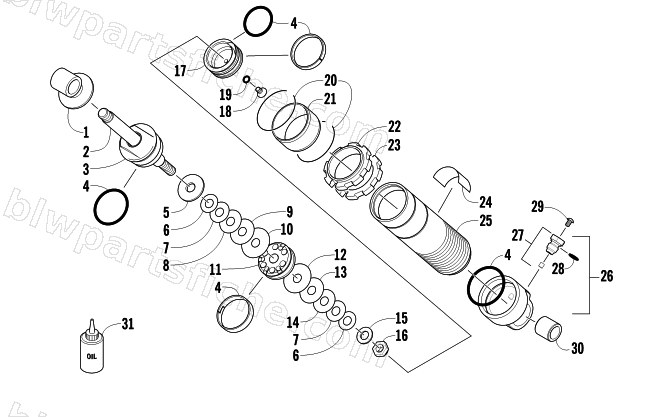

REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2012 F 1100 TURBO SNO PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 2 | 2604-883 | SHAFT,CHROME-.498" X 6.15" | 1 | $179.95 | |
| 3 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 4 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 5 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 6 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 7 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 8 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 9 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 10 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 11 | 2603-309 | PISTON,DAMPING-1.459 BORE-.093 ORIFICE | 1 | $34.95 | |
| 12 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 13 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 14 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 15 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 16 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 17 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 18 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 19 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 20 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 21 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 22 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 23 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 24 | 2603-475 | DECAL,SHOCK BODY-ZERO PRO-5.100X.800 | 1 | $22.01 | |
| 25 | 3604-178 | BODY,SHOCK-ALUM-5.725" | 1 | $116.95 | |
| 26 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 27 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 28 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 29 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 30 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 31 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
