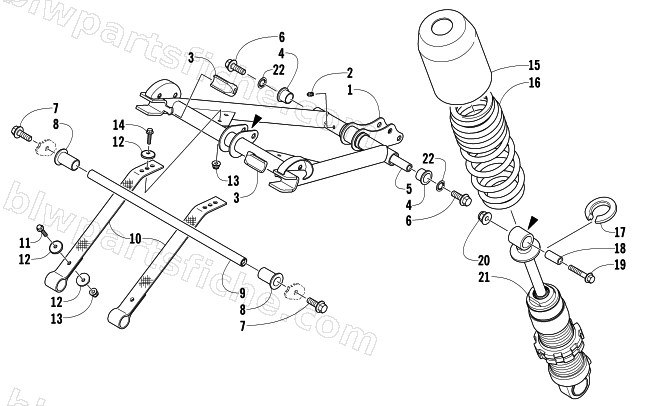

REAR SUSPENSION FRONT ARM ASSEMBLY
2012 F 800 SNO PRO ANNIVERSARY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-402 | ARM,FRT-W/PIVOT-BLK FABR | 1 | $318.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-141 | BUMPER,SLIDER-FRONT | 1 | $4.26 | |
| 4 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 5 | 3604-634 | AXLE,ALUM-19.05 X 219.35-MACH | 1 | $19.25 | |
| 6 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 7 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 8 | 3604-233 | BUSHING,FRONT SLIDER | 1 | $17.87 | |
| 9 | 3604-663 | AXLE,FRONT ARM-15.88 OD X 394.2 | 1 | $49.95 | |
| 10 | 3604-683 | R/B 3604-823 | 1 | $18.95 | |
| 11 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 12 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 15 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 16 | 1704-736 | SPRING,COMP - 90/250# X 8.25"-PTD BLK | 1 | $32.95 | |
| 17 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 18 | 3604-273 | AXLE,SHOCK-FRT ARM-M10 | 1 | $2.88 | |
| 19 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 20 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 21 | 2704-169 | SHOCK,FRT ARM-11.76"-F 800 SP | 1 | $144.95 | |
| 22 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 |
