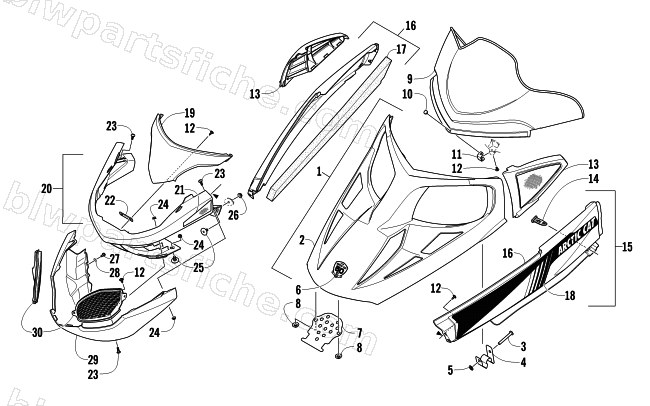

2012 Arctic Cat F570 — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2012 F570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-297 | LID,HOOD-BLK-W/O VENTS W/DECALS | 1 | $235.95 | |
| 1 | 3718-139 | LID,HOOD-BLK W/O VENTS W/DECALS | 1 | $211.95 | |
| 2 | 7800-953 | LID,HOOD-BLK-W/O VENTS-MFG ASSY | 1 | $181.95 | |
| 3 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 4 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 4 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 5 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 6 | 9611-603 | DECAL,EMBLEM-50TH ANNIVERSARY-GRN | 1 | $32.95 | |
| 6 | 9611-399 | DECAL,EMBLEM-50TH ANNIVERSARY-CHROME | 1 | $32.95 | |
| 7 | 5606-042 | BRKT, LID HINGE-08 PROD | 1 | $33.95 | |
| 8 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 9 | 5606-961 | WINDSHIELD,MID | 1 | $224.95 | |
| 10 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 11 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 5606-924 | BEZEL,INTAKE-RH-BLK ASSY | 1 | $58.95 | |
| 13 | 5606-925 | BEZEL,INTAKE-LH-BLK ASSY | 1 | $58.95 | |
| 14 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 15 | 3718-298 | SPAR,FRONT-RH-BLK W/DECALS | 1 | $71.95 | |
| 15 | 3718-299 | SPAR,FRONT-LH-BLK W/DECALS | 1 | $71.95 | |
| 15 | 3718-144 | SPAR,FRONT-RH-BLK W/DECALS | 1 | $81.95 | |
| 15 | 3718-145 | SPAR,FRONT-LH-BLK W/DECALS | 1 | $71.95 | |
| 16 | 3718-316 | SPAR,FRONT-BLK-RH W/O DECALS | 1 | $56.95 | |
| 16 | 3718-317 | SPAR,FRONT-BLK-LH W/O DECALS | 1 | $56.95 | |
| 17 | 0617-656 | FOAM,SPAR-RH | 1 | $17.87 | |
| 17 | 0617-657 | FOAM,SPAR-LH | 1 | $17.87 | |
| 18 | 9611-468 | DECAL, FRT SPAR-RH GRN | 1 | $65.95 | |
| 18 | 9611-469 | DECAL,FRT SPAR-LH GRN | 1 | $20.63 | |
| 18 | 9611-476 | DECAL,FRT SPAR-RH ORN | 1 | $46.95 | |
| 18 | 9611-477 | DECAL,FRT SPAR-LH ORN | 1 | $46.95 | |
| 19 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 20 | 3718-038 | BUMPER,FRONT CLIP-GRN W/REFL | 1 | $160.95 | |
| 20 | 2718-969 | BUMPER,FRONT CLIP-ORN W/ REFL | 1 | $164.95 | |
| 21 | 9611-384 | DECAL,REFLECTOR-AMBER RH | 1 | $29.95 | |
| 21 | 9611-385 | DECAL,REFLECTOR-AMBER LH | 1 | $29.95 | |
| 22 | 5606-953 | SPACER,UPPER FASCIA | 1 | $3.44 | |
| 23 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 24 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 25 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 26 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 27 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 28 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 29 | 5606-463 | R/B 5606-462 | 1 | $56.95 | |
| 29 | 5606-465 | FACIA,BUMPER-LWR-MOLD ORN | 1 | $93.95 | |
| 30 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 30 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 |
