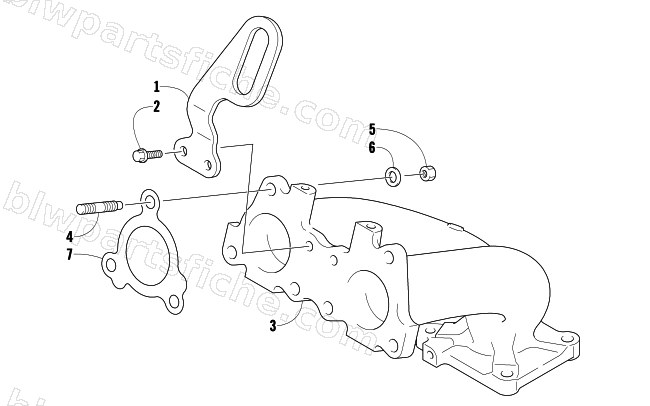

2012 Arctic Cat M 1100 TURBO SNO PRO 162 — EXHAUST MANIFOLD ASSEMBLY
2012 M 1100 TURBO SNO PRO 162
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-790 | HOOK,ENGINE | 1 | $33.95 | |
| 2 | 3007-432 | BOLT | 1 | $3.44 | |
| 3 | 3007-791 | MANIFOLD,EXHAUST | 1 | $1,336.95 | |
| 4 | 3007-792 | BOLT,EXH MANIF STUD | 1 | $17.87 | |
| 5 | 3006-111 | NUT,8MM '02 660 L/C | 1 | $2.75 | |
| 6 | 3007-793 | WASHER,EXH MANIF | 1 | $2.47 | |
| 7 | 3007-794 | GASKET,EXH PIPE | 1 | $20.63 |
