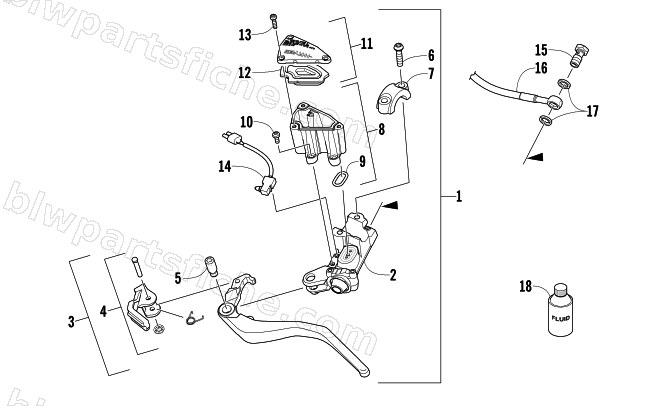

2012 Arctic Cat M 1100 TURBO SNO PRO ANNIVERSARY — HYDRAULIC BRAKE CONTROL ASSEMBLY
2012 M 1100 TURBO SNO PRO ANNIVERSARY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-344 | CYLINDER,MASTER | 1 | $275.95 | |
| 2 | 2602-426 | PISTON,SUB ASSY-W/RESERVOIR BODY | 1 | $326.95 | |
| 3 | 2602-427 | LEVER & PARK LEVER-SUB ASSY | 1 | $131.95 | |
| 5 | 2602-431 | PIN,PIVOT | 1 | $12.95 | |
| 6 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 7 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 8 | 2602-433 | RESERVOIR-W/MOUNT SCREWS | 1 | $49.95 | |
| 9 | 2602-518 | O-RING,RESERVIOR | 1 | $3.30 | |
| 10 | 2602-519 | SCREW,SELF-TAPPING-RESERVIOR | 1 | $1.78 | |
| 11 | 2602-429 | RESERVOIR COVER-SUB ASSY | 1 | $32.95 | |
| 12 | 2602-520 | GASKET,RESERVIOR COVER | 1 | $8.21 | |
| 13 | 2602-430 | KIT,SCREWS-RESERVOIR COVER | 1 | $5.37 | |
| 14 | 2602-432 | SWITCH,STOPLIGHT | 1 | $88.95 | |
| 15 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 16 | 2602-424 | R/B 3602-099 | 1 | $104.95 | |
| 17 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 18 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
