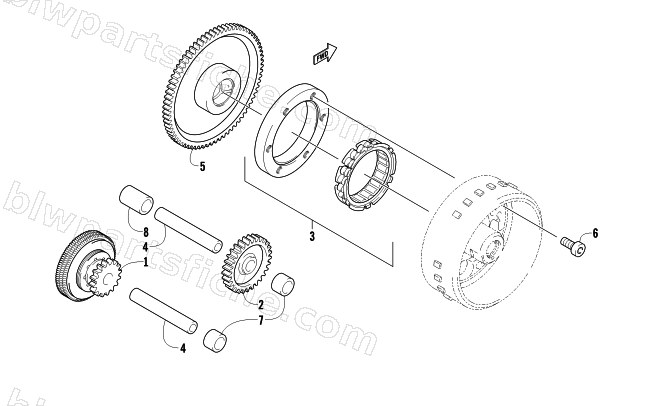

2012 Arctic Cat M 1100 TURBO SNO PRO HCR — STARTER CLUTCH ASSEMBLY
2012 M 1100 TURBO SNO PRO HCR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-125 | LIMITER ASSY,STARTER IDLE GR | 1 | $323.95 | |
| 2 | 3007-126 | GEAR,STARTER IDLE NO.2 | 1 | $126.95 | |
| 3 | 3007-127 | CLUTCH,STARTER ONE WAY | 1 | $280.95 | |
| 4 | 3007-128 | PIN,STARTER IDLE GEAR | 1 | $26.95 | |
| 5 | 3007-129 | GEAR,STARTER CLUTCH | 1 | $248.95 | |
| 6 | 3007-130 | BOLT,STARTER ONE WAY CLUTCH(8X16) | 1 | $2.47 | |
| 7 | 3007-131 | SPACER,STARTER IDLER GEAR(12.5X19X13) | 1 | $17.87 | |
| 8 | 3007-132 | SPACER,STARTER IDLER GEAR 2 12.9X19X31.7 | 1 | $15.11 |
