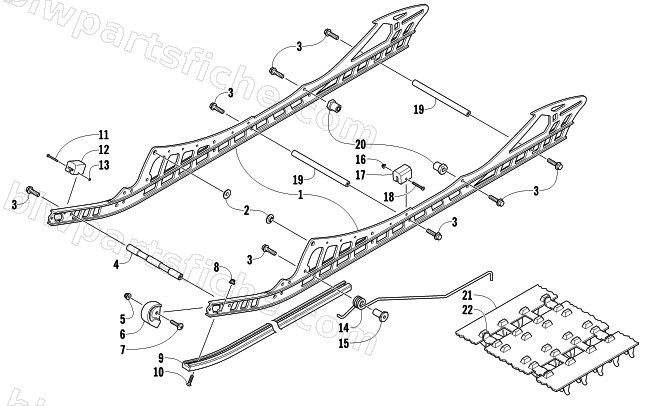

SLIDE RAIL AND TRACK ASSEMBLY
2012 M 800 SNO PRO ANNIVERSARY 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-116 | RAIL,SUSP-153"-PTD BLK | 1 | $362.95 | |
| 2 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 3 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 4 | 3604-630 | AXLE,XBRC/LMTR-19.94X222.25 (M8X1.25) | 1 | $74.95 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 7 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 3604-715 | WEARSTRIP, SLIDE RAIL-57.00" | 1 | $38.95 | |
| 10 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 13 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 14 | 1704-734 | SCRATCHER,ICE-RH-PTD BLK | 1 | $42.95 | |
| 14 | 1704-735 | SCRATCHER,ICE-LH-PTD BLK | 1 | $42.95 | |
| 15 | 3604-678 | BUSHING,ICE SCRATCHER-M8 | 1 | $10.29 | |
| 16 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 17 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 18 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 19 | 3604-667 | AXLE,XBRC-16.51X222.25 (M8X1.25) | 1 | $29.95 | |
| 20 | 3604-635 | BUSHING,STOP-REAR ARM-M8X1.25THDS | 1 | $5.51 | |
| 21 | 2602-167 | TRACK,POWER CLAW-15X153X2.25(3.0 PITCH) | 1 | $1,573.95 | |
| 22 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
