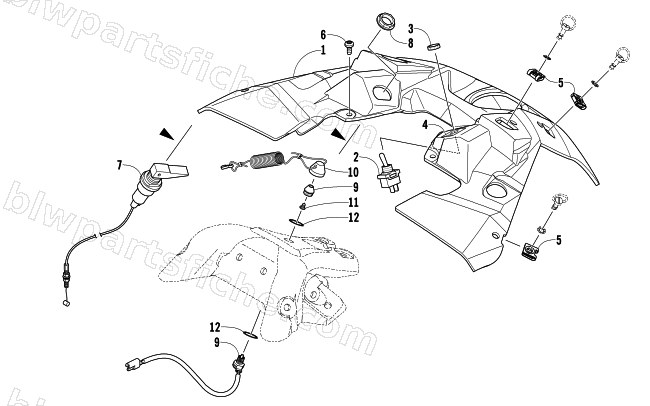

2012 Arctic Cat SNO PRO 600 CROSS COUNTRY — CONSOLE AND SWITCH ASSEMBLY
2012 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-425 | CONSOLE,UPPER-BLK | 1 | $193.95 | |
| 2 | 0609-904 | SWITCH,TOGGLE-SPST | 1 | $24.77 | |
| 3 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 4 | 9611-053 | DECAL,TOGGLE SWITCH | 1 | $19.25 | |
| 5 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 6 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 7 | 0687-228 | CABLE,CHOKE | 1 | $81.95 | |
| 8 | 0687-181 | NUT,PLASTIC-CHOKE | 1 | $1.64 | |
| 9 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 10 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 12 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 |
